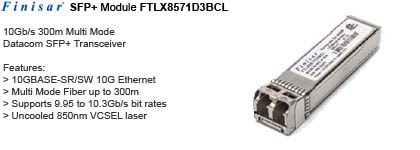

Finisar SFP+ Optical Module FTLX8571D3BCL
MC-SFP+xxx

Links:

Introduction:

Finisar’s FTLX8571D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-84311, SFF-84322 and IEEE 802.3ae 10GBASE-SR/SW3. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84724. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC5, and Finisar Application Note AN-20386.

Applications:

  • 10GBASE-SR/SW 10G Ethernet

Features:

  • Hot-pluggable SFP+ footprint

  • Supports 9.95 to 10.3 Gb/s bit rates*

  • Power dissipation < 1W

  • RoHS-6 compliant (lead-free)

  • Commercial temperature range 0°C to 70°C

  • Single 3.3Vpower supply

  • Maximum link length of 300m on 2000 MHZ-km MMF

  • Uncooled 850nm VCSEL laser

  • Receiver limiting electrical interface

  • Duplex LC connector

  • Built-in digital diagnostic functions

*Contact Finisar for higher data-rate support.
