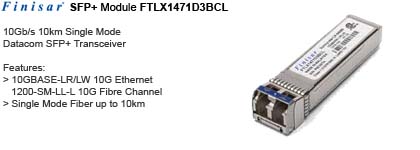

Finisar SFP+ Optical Module FTLX1471D3BCL
MC-SFP+xxx

Links:

Introduction:

Finisar’s FTLX1471D3BCL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311, SFF-84322 and IEEE 802.3ae 10GBASE-LR/LW3, and 10G Fibre Channel 1200-SM-LL-L4 Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725. The FTLX1471D3BCL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC6, and Finisar Application Note AN-20387.

Applications:

  • 10GBASE-LR/LW 10G Ethernet

  • 1200-SM-LL-L 10G Fibre Channel

Features:

  • Hot-pluggable SFP+ footprint

  • Supports 9.95 to 10.5Gb/s bit rates*

  • Power dissipation < 1W

  • RoHS-6 compliant (lead-free)

  • Commercial temperature range -5°C to 70°C

  • Single 3.3V power supply

  • Maximum link length of 10km

  • Uncooled 1310nm DFB laser

  • Receiver limiting electrical interface

  • Duplex LC connector

  • Built-in digital diagnostic functions

*Contact Finisar for higher data-rate support.
