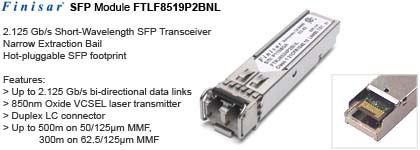

Finisar FTLF8519P2BNL
2.125 Gb/s RoHS Compliant
Short-Wavelength SFP Transceiver
Narrow Extraction Bail
Hot-pluggable SFP footprint
MC-SFP-FTLF8519P2BNL

Download Finisar FTLF8519P2xNL Spec. Sheet.

Introduction:
Finisar’s FTLF8519P2xNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and Fibre Channel FC- PI-2 Rev. 5.03. They are RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Products Features:
> Up to 2.125 Gb/s bi-directional data links
> Hot-pluggable SFP footprint
> Built-in digital diagnostic functions
> 850nm Oxide VCSEL laser transmitter
> Duplex LC connector
> RoHS Compliant and Lead-Free
> Up to 500m on 50/125μm MMF, 300m on 62.5/125μm MMF
> Metal enclosure, for lower EMI
> Single 3.3V power supply
> Low power dissipation
> Extended operating temperature range: -20°C to 85°C

Applications:
> 1.25 Gb/s 1000Base-SX Ethernet
> Dual Rate 1.063/2.125 Gb/s Fibre Channel
