Wireless Access Point
802.11g
D-Link (Dlink) Air-Plus (AirPlus) XtremeG (Xtreme-G, Extreme-G)

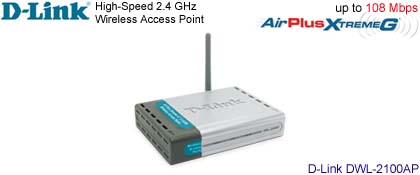

2.4 GHz High-Speed up to 108Mbps DWL-2100AP Access Point
Product
Features:
*
Up to 108Mbps (*)
* WPA & 802.1x Authentication
* SNMP Management Software Included
* Also Work as Point-To-Point Bridge, Point-to-Multipoint Bridge,
Repeater, Wireless Client
Product Description:
D-Link®, the industry pioneer in wireless networking, introduces a
performance breakthrough in wireless connectivity – D-Link AirPlus
Xtreme GTM series of high-speed devices now capable of
delivering transfer rates up to 15x faster than the standard 802.11b
with the new D-Link 108G. With the new AirPlus Xtreme G DWL-2100AP
Wireless Access Point, D-Link sets a new standard for wireless access
points.
With the D-Link 108G enhancement, the DWL-2100AP can achieve wireless
speeds up to 15x in a pure D-Link 108G environment through the use of
new wireless technologies such as Packet Bursting, Fast Frame,
Compression & Encryption, and Turbo mode. These technologies enable a
throughput high enough to handle video/audio streaming and future
bandwidth-intense applications. The DWL-2100AP Wireless Access Point
also supports SNMP v.3 for better network management with the provided
Wireless AP Manager software that manages network configuration and
firmware upgrades. For Enterprise networks, the DWL-2100AP supports
network administration and real-time network traffic monitoring via
D-Link's D-View Network Management software.
The D-Link DWL-2100AP Access Point has been verified and successfully
passed through the Intel Wireless Verification Program, which tests the
compatibility of various access point devices and wireless service
providers with common configuration of notebooks built on Intel®
Centrino™ mobile technology**.The DWL-2100AP features
WDS (Wireless Distribution System) that can be configured to perform in
any one of five modes: a Wireless Access Point, a Point-to-Point (PtP)
bridge with another DWL-2100AP, a Point-to-Multipoint (PtMP) bridge, a
Repeater for range extension, or as a Wireless Client. The WDS feature
makes the DWL-2100AP an ideal solution for quickly creating and
extending a wireless local area network (WLAN) in offices or other
workplaces, or even at hotspots.
The DWL-2100AP Wireless Access Point comes with a
detachable antenna utilizing a reverse SMA connector. By simply
attaching a D-Link wireless antenna, you can increase the wireless range
of the DWL-2100AP.
Wireless security is addressed as the DWL-2100AP
Wireless Access Point uses WPA (Wi-Fi Protected Access) and 802.1X
authentication to provide a higher level of security for data
communication amongst wireless clients. The DWL-2100AP is also fully
compatible with the IEEE 802.11b and 802.11g standards. With great
manageability, versatile operation modes, solid security enhancement,
the cost-effective D-Link AirPlus Xtreme G DWL-2100AP Wireless Access
Point provides the ultra-fast 108Mbps* speed and everything
else a network professional dreams of.
* Maximum wireless signal
rate derived from IEEE Standard 802.11g specifications. Actual data
throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and
construction, and network overhead, lower actual data throughput rate.
Environmental factors will adversely affect wireless signal range.
** Intel, the Intel Inside Logo, Intel Centrino and the Intel Centrino
logo are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
This wireless access point product has been verified for basic
compatibility with corresponding Intel® Centrino mobile technology based
notebooks. Notebooks based on Intel Centrino mobile technology do not
support proprietary 802.11g performance-enhancement features. Data rate,
features and performance may vary based on the configuration of your
notebook and other factors.
Specifications:
Standards:
* IEEE 802.11g
* IEEE 802.11b
* IEEE 802.11
* IEEE 802.3
* IEEE 802.3u
Device Management:
* Web-Based –
Internet Explorer v6 or later; Netscape Navigator v6 or later; or other
Java- enabled browsers.
* SNMP v.3
Wireless Distribution
System:
* AP Client
* PtP Bridge
* PtMP Bridge
* Repeater
Security:
* 64, 128, 152-bit WEP
* 802.1X (EAP-MD5, EAP-TLS, EAP-TTLS and EAP-PEAP)
* WPA —Wi-Fi Protected Access
* MAC Address Access Control (WPA-TKIP and WPA-AES)
Media Access Control:
CSMA/CA with ACK
Wireless Frequency
Range:
2.4GHz to 2.4835GHz
Wireless Signal
Range*:
* Indoors: Up to 328
ft (100 meters)
* Outdoors: Up to 1312 ft (400 meters)
Modulation Technology:
* Orthogonal
Frequency Division Multiplexing (OFDM)
* Complementary Code Keying (CCK)
* DQPSK
* DBPSK
Wireless Transmit
Power:
15dBm (32mW) ± 2dB
(Control TX power level from full, 50%, 25%, 125% and min.)
Receiver Sensitivity*:
* 54Mbps OFDM, 10%
PER,-66dBm)
* 48Mbps OFDM, 10% PER,-71dBm
* 36Mbps OFDM, 10% PER,-76dBm
* 24Mbps OFDM, 10% PER,-80dBm
*
18Mbps OFDM, 10% PER,-83dBm
* 12Mbps OFDM, 10% PER,-85dBm
* 11Mbps CCK, 8% PER,-83dBm
* 9Mbps OFDM, 10% PER,-86dBm
* 6Mbps OFDM, 10% PER,-87dBm
* 2Mbps QPSK, 8% PER,-89dBm
External Antenna Type:
1.0dB Dipole with
reverse SMA connector
LEDs:
* Power
* LAN (10/100)
* WLAN (Wireless Connection)
Temperature:
* Operating: 32°F to
140°F (0°C to 40°C)
* Storing: 4°F to 149°F (-20°C to 65°C)
Humidity:
95% maximum
(non-condensing)
Power Input:
Ext. Power Supply DC
5V, 2.0A
Safety & Emissions:
FCC, UL, VCCI, CSA,
EN
Dimensions:
* L = 5.6 inches
(142mm)
* W = 4.3 inches (109mm)
* H = 1.2 inches (31mm)
Weight:
0.44 lbs (200g)
Warranty:
D-Link's 3 Year
Limited Warranty, subject to change without prior notice. |
