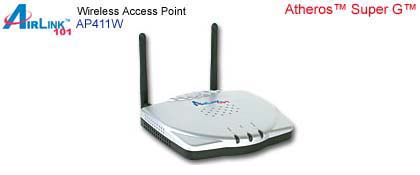

Wireless Access Point
802.11g Atheros™ Super G™ up to 108Mbps AirLink 101 AP411W

* IEEE 802.11g/b and Super G™ supporting up to 108Mbps data rates
* Supports use of WPA and 802.1x for extra security
* Also works as a Point-to-Point bridge, Point-to-Multipoint bridge, Repeater, and Wireless Client
* Dual diversity antennas to accommodate multi-path environments

Extend the range of your current Airlink101™ or other wireless network. Perfect for connecting two Ethernet-ready consoles together. Connect other Ethernet-ready devices to your current wireless network. Add wireless capabilities to your current local area network. Wireless excryption data with 64/128/152-bit WEP. Compatible with products using Atheros™ Super G™ technology for 108Mbps. Also backward compatible with 802.11b.

Specifications:

Standards Wireless: IEEE 802.11g/b, Atheros™ Super G™, Ethernet: IEEE 802.3, 802.3x
Data Rate Atheros™ Super G™: up to 108 Mbps*, 802.11g: up to 54Mbps*, 802.11b: up to 11Mbps*
Chipset Atheros™
Transmit Power 18dBm @ 11Mbps, 14~15dBm @ 54/108Mbps
Antenna Type 2x detachable reverse SMA dipole antenna with 2dBi gain for 2.4Ghz
Interface Factory reset button, Power jack, 10/100M Base-T (UTP), Wireless dipole antennas.
Functions Bridge forwarding, Mac® address filtering. Configuration via Web or telnet. AP statistics.
Security WEP 64/128/152-bit encryption, WPA-PSK and WPA-TLS
Power External DC 5V
Dimensions 110 x 80 x 20 mm (L x W x H)
Certifications FCC and CE

* Super G™ technology (108Mbps) can only be obtained when using products with Atheron Super G™ chipset.

* Theoretical maximum wireless signal rate based on Atheros™ Super G™ and IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
Windows®, Mac®, or Linux® based Operating Systems with an installed Ethernet adapter and Internet Explorer 5.5 or Netscape® Navigator version 4.78 and above.

Package Contents
* Wireless Access Point
* Quick Installation Guide
* Manual CD
* Power Adapter
* RJ45 Cable
