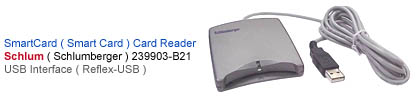

Memory Card Reader USB for Smart Card Reflex USB made by Schlumberger

USB SmartCard Reader
Smart Card Reader Reflex USB
Schlumberger ( Schlum ) 239903-B21
CR-U1-SM-REFLEX

Physical Specifications
> Dimensions L: 90mm x H: 16.5mm x W: 70mm
> Color Metallic grey
> Packaging Individual transparent bubble wrap
> Cable Cable: 2 meter long with USB type A connector
> Operating temperature 0^o to 60^o Celsius
> Human Interface One green LED
> Smart card connector 8 contacts - ISO location PC Card Connector supports up to 10,000 insertions into the PC's PC-card slot
> Supports Embossed smart card

Electrical Specifications
> PC Interface - Full speed USB (12Mbps) Bus powered device Hubless
> Power supply - 5V Power through USB bus
> Power consumption - Operating mode: 20mA
Idle mode: 5mA
> Supported operating systems - Windows 98, W2000, others - on request
> API PC/SC CT-API (thru wrapper on top of PC/SC)
> Communication speed with PC USB 1.1, 12M bps, PnP Support
> Communication speed with card 9600 bps - 152000 bps
> Smart card compatibility T=1, T=0 protocol support Memory card support upon request Communication speed up to 115,200 bps (PPS, FI parameter) Frequency up to 12 MHz (PPS, DI parameter) Support ISO 7816 Class A and AB smart card
> Other features Live card insertion/removal, PPS support
