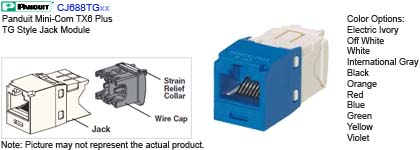

RJ45 UTP Module 8P8C
Cat6 Keystone Jack
Panduit
Mini-Com TX6 Plus TG Style CJ688TGxx
KS-8P8C-PD-CJ6xxx
Links:
Products Family:
|
color |
single package |
Bulk Pack of 24 |
Electric Ivory |
CJ688TGEIV |
CJ688TGEIV-24PK |
Off White |
CJ688TGIW |
CJ688TGIW-24PK |
White |
CJ688TGWH |
CJ688TGWH-24PK |
International Gray |
CJ688TGIG |
CJ688TGIG-24PK |
Black |
CJ688TGBLK |
CJ688TGBLK-24PK |
Orange |
CJ688TGOR |
CJ688TGOR-24PK |
Red |
CJ688TGRD |
CJ688TGRD-24PK |
Blue |
CJ688TGBU |
CJ688TGBU-24PK |
Green |
CJ688TGGR |
CJ688TGGR-24PK |
Yellow |
CJ688TGYL |
CJ688TGYL-24PK |
Violet |
CJ688TGVL |
CJ688TGVL-24PK |
Features:
- Exceed requirements of
ANSI/TIA-568-C.2 Category 6, IEEE 802.3an-2006, and ISO 11801 Class
E channel standards
- Exceed requirements of
ANSI/TIA-568-C.2 Category 6 and IEC 61156-5 Category 6 component
standards
- Meet requirements of
IEEE 802.af and IEEE 802.3at for PoE applications
- Each jack is 100%
tested to ensure NEXT and RL performance and is individually
serialized for traceability
- Utilize patent-pending
enhanced Giga-TX™Technology for jack terminations which optimizes
performance by maintaining cable pair geometry and eliminating
conductor untwist
- Contacts plated with
50 microinches of gold for superior performance
- No punchdown tool
required; termination tool (EGJT) ensures conductors are fully
terminated by utilizing a smooth forward motion without impact on
critical internal components for maximum reliability
- Optional termination
tool (TGJT) reduces termination time by 25%, ideal for high volume
installations
- Can be re-terminated a
minimum of twenty times
- Off white termination
cap designates Category 6 PLUS performance and provides positive
strain relief; helps control cable bend radius and securely retains
wires
- Terminate 4-pair, 22 –
26 AWG, 100 ohm, solid or stranded twisted pair cable
- Universal termination
cap is color-coded for T568A and T568B wiring schemes
- Accept 6 and
8-position modular plugs without damage
- Can be clearly
identified with optional labels and icons
- Compatible with
Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes
To ensure optimal
performance, Panduit recommends use with other Panduit® Category 6 PLUS
components.
Specifications:
- Part Number: CJ688TGxx
- RoHS
Compliancy Status: Compliant
- Part
Description: Category 6, RJ45,
8-position, 8-wire universal module.
- Product
Type: UTP Jack Module
- CE
Compliant: No
- No.
of Module Spaces: 1
- Performance
Level: Category 6
- Pricing
Description: Mini-Com Module, Cat
6, UTP, 8 pos 8 wire, Universal, Blue, TG Style
- Wiring
Scheme: T568A/T568B
|
