RJ45 UTP Module
8P8C
Cat5e Keystone Jack

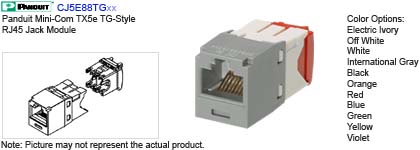

Panduit Mini-Com TX5e TG-Style CJ5E88TGxx
KS-8P8C-PD-CJ5Exxx
Links:
Products Family:
|
color |
single package |
Bulk Pack of 24 |
Electric Ivory |
CJ5E88TGEIV |
CJ5E88TGEIV-24PK |
Off White |
CJ5E88TGIW |
CJ5E88TGIW-24PK |
White |
CJ5E88TGWH |
CJ5E88TGWH-24PK |
International Gray |
CJ5E88TGIG |
CJ5E88TGIG-24PK |
Black |
CJ5E88TGBLK |
CJ5E88TGBLK-24PK |
Orange |
CJ5E88TGOR |
CJ5E88TGOR-24PK |
Red |
CJ5E88TGRD |
CJ5E88TGRD-24PK |
Blue |
CJ5E88TGBU |
CJ5E88TGBU-24PK |
Green |
CJ5E88TGGR |
CJ5E88TGGR-24PK |
Yellow |
CJ5E88TGYL |
CJ5E88TGYL-24PK |
Violet |
CJ5E88TGVL |
CJ5E88TGVL-24PK |
Features:
- Exceed
requirements of ANSI/TIA-568-C.2 Category 5e, IEEE 802.3an-2006, and
ISO 11801 Class D channel standards
- Exceed
requirements of ANSI/TIA-568-C.2 Category 5e and IEC 61156-5
Category 5e component standards
- Meet
requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
- Each jack is
100% tested to ensure NEXT and RL performance and is individually
serialized for traceability
- Utilize
patent-pending enhanced Giga-TX™ Technology for jack terminations
which optimizes performance by maintaining cable pair geometry and
eliminating conductor untwist
- Contacts plated
with 50 microinches of gold for superior performance
- No punchdown
tool required; termination tool (EGJT) ensures conductors are fully
terminated by utilizing a smooth forward motion without impact on
critical internal components for maximum reliability
- Optional
termination tool (TGJT) reduces termination time by 25%, ideal for
high volume installations
- Can be
re-terminated a minimum of twenty times
- Red termination
cap designates Category 5e performance and provides positive strain
relief; helps control cable bend radius and securely retains wires
- Terminate
4-pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable
- Universal
termination cap is color-coded for T568A and T568B wiring schemes
- Accept 6 and
8-position modular plugs without damage
- Can be clearly
identified with optional labels and icons
- Compatible with
Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes
- Optional RJ45
blockout device blocks out unauthorized access to jack modules and
potentially harmful foreign objects, saving time and money
associated with data security breaches, network downtime, repair,
and hardware replacement
- Optional dust
cap keeps out dust and debris while not in use
Specification:
- Part Number:
CJ5E88TGAW
- RoHS Compliancy
Status: Compliant
- Part
Description: Category 5e, RJ45, 8-position, 8-wire universal jack
module.
- Product Type:
UTP Jack Module
- CE Compliant: No
- No. of Module
Spaces: 1
- Performance
Level: Category 5e/Class D
- Pricing
Description: Mini-Com Module, Cat 5e, UTP, 8 pos 8 wire, Universal,
Arctic White, TG Style
- Wiring Scheme:
T568A/T568B
- Min. Order UOM:
PC
- Min. Order Qty.:
1
|
