RJ45 STP Module 8P8C Cat6 Keystone Jack

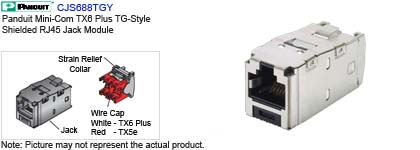

Panduit Mini-Com TX6 Plus TG-Style Shielded CJS688TGY
 KS-8P8C-PD-CJS6xxx

Links:

Products Family:

Catagory single package Bulk Pack of 24
Shielded CJS68TGY CJS688TGY-24PK

Features:

  • Exceed requirements of ANSI/TIA-568-C.2 Category 6, IEEE 802.3an-2006, and ISO 11801 Class E channel standards
  • Exceed requirements of ANSI/TIA-568-C.2 Category 6 and IEC 61156-5 Category 6 component standards
  • Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE application
    Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability
  • Utilize patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
  • Fully grounded and bonded to patch panel when installed in Panduit All Metal Modular Patch Panel
  • Contacts plated with 50 microinches of gold for superior performance
  • No punchdown tool required; termination tool (EGJT) ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
  • Optional termination tool (TGJT) reduces termination time by 25%, ideal for high volume installations
  • Can be re-terminated a minimum of twenty times
  • Off white termination cap designates Category 6 performance and provides positive strain relief; helps control cable bend radius and securely retains wires
  • Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded shielded twisted pair cable
  • Universal termination cap is color-coded for T568A and T568B wiring schemes
  • Integrated strain relief with wire cap provides 360° conductive path for grounding
  • 0.187" tab provides conductive path for grounding individual jacks
  • Accept 6 and 8-position modular plugs without damage
  • Can be clearly identified with optional labels and icons
  • Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes
  • Optional RJ45 blockout device blocks out unauthorized access to jack modules and potentially harmful foreign objects, saving time and money associated with data security breaches, network downtime, repair, and hardware replacement
  • Optional dust cap keeps out dust and debris while not in use

To ensure optimal performance, Panduit® recommends use with other Panduit® Category 6 PLUS components.

Specification:

  • Part Number: CJS688TGY
  • RoHS Compliancy Status: Compliant
  • Note: CJS688TGY replaces CJS688TG
  • Part Description: Category 6, RJ45, 8-position, 8-wire universal shielded black module with integral shield.
  • Product Type: Shielded Jack Module
  • Material:
    • Module housing - ABS
    • Wire cap - Plastic
  • Color: Black
  • Depth (In.): 1.50
  • Depth (mm): 38.1
  • Height (In.): 0.73
  • Height (mm): 18.6
  • Width (In.): 0.62
  • Width (mm): 15.8
  • CE Compliant: No
  • No. of Module Spaces: 1
  • Performance Level: Category 6/Class E
  • Pricing Description: Mini-Com Mini-Jack Shielded Module, Category 6, Universal, TG Style
  • Wiring Scheme: T568A/T568B
  • Min. Order UOM: PC
  • Min. Order Qty.: 1
