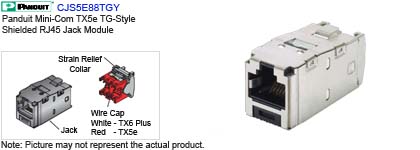

RJ45 STP Module 8P8C Cat5e Keystone Jack
Panduit Mini-Com TX5e TG-Style Shielded CJS5E88TGY
 KS-8P8C-PD-CJS5Exxx

Links:

Products Family:

Catagory single package Bulk Pack of 24
Shielded CJS5E88TGY CJS5E88TGY-24PK

Features:

  • Exceed requirements of ANSI/TIA-568-C.2 Category 5e, IEEE 802.3an-2006, and ISO 11801 Class D channel standards
  • Exceed requirements of ANSI/TIA-568-C.2 Category 5e and IEC 61156-5 Category 5e component standards
  • Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
  • Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability
  • Utilize patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
  • Fully grounded and bonded to patch panel when installed in Panduit All Metal Modular Patch Panel
  • Contacts plated with 50 microinches of gold for superior performance
  • No punchdown tool required; termination tool (EGJT) ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
  • Optional termination tool (TGJT) reduces termination time by 25%, ideal for high volume installations
  • Can be re-terminated a minimum of twenty times
  • Red termination cap designates Category 5e performance and provides positive strain relief; helps control cable bend radius and securely retains wires
  • Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded shielded twisted pair cable
  • Universal termination cap is color-coded for T568A and T568B wiring schemes
  • Integrated strain relief with wire cap provides 360° conductive path for grounding
  • 0.187 in. tab provides conductive path for grounding individual jacks
  • Accept 6 and 8-position modular plugs without damage
  • Can be clearly identified with optional labels and icons
  • Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes
  • Optional RJ45 blockout device blocks out unauthorized access to jack modules and potentially harmful foreign objects, saving time and money associated with data security breaches, network downtime, repair, and hardware replacement
  • Optional dust cap keeps out dust and debris while not in use

Specifications:

  • Part Number: CJS5E88TGY
  • RoHS Compliancy Status: Compliant
  • Part Description: Category 5e, RJ45, 8-position, 8-wire universal shielded black module with integrated shield.
  • Product Type: Shielded Jack Module
  • Material:
    • Module housing - ABS
    • Shield - Tin plated over phosphor bronze
    • Wire Cap - Zinc and Plastic
  • Color: Black
  • Depth (In.): 1.50
  • Depth (mm): 38.1
  • Height (In.): 0.73
  • Height (mm): 18.6
  • Width (In.): 0.62
  • Width (mm): 15.8
  • CE Compliant: No
  • No. of Module Spaces: 1
  • Performance Level: Category 5e/Class D
  • Pricing Description: Mini-Com Shielded Module, Category 5e, Universal, TG Style
  • Wiring Scheme: T568A/T568B
  • Min. Order UOM: PC
  • Min. Order Qty.: 1
