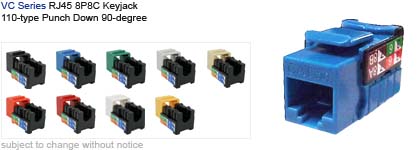

RJ45 8P8C Keystone Jack
# 110 type 90-degree Punch Down
VC-Series
KS-8P8CPD-xxx

Options:

Category Color Options
Cat.5e black blue gray green ivory orange red white yellow
Cat.6 x blue

x

 green ivory orange red white yellow
Cat.6a

x

 blue

x

 x

x

 x

x

x

 x

Product Features:

  • 8 Positions, 8 Conductors
  • Modular Unshielded CAT5E Jack
  • 50µ” Gold Plated Brass Contacts
  • Flame Retardant Housing Materials and PCB Board
  • U-Style (90°) Terminator Block
  • Snaps easily into most Wall Plates, Surface Mount Boxes and Blank Patch Panels
  • TIA/EIA-568A/B Compliant

Physical Specifications

  • Dimension (mm) 19.86H x 17W x 31D

Housing Material

  • Housing UL 94V-0 self extinguished plastic
  • IDC Housing UL 94V-0 self extinguished plastic

Contact Material

  • IDC 110 Contacts Phosphor bronze, nickel plated
  • Nose Contacts 50μ Gold plating over nickel
  • Operating Life Minimum 750 Insertions
  • Capability 22 to 26 AWG Solid
  • PCB FR-4, 1.6mm double sided
  • Cap UL 94V-0 rated

Product Certifications

  • ANSI/TIA-568-C.2, FCC, 3P
  • ETL Listed
