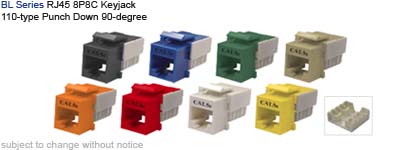

RJ45 8P8C Keystone Jack
# 110 type 90-degree Punch Down
BL-Series
KS-8P8CPD-xxx

Options:

Category Color Options
Cat.5e black, blue, green, ivory, orange, red, yellow, white
Cat.6 black, blue, green, ivory, orange, red, yellow, white

Product Features:

  • Module Style: Connector
  • Module Type: Category 5, 5e, and 6
  • Position / Conductor: 8P8C
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Termination Type: 110 Punchdown 90-degree
  • Wiring Standard: T568A T568B

Links:

  • Cat.5e

1.      2.      3.      4.

5.      6.      7.      8.

  • Cat.6

    1.      2.      3.      4.

    5.      6.      7.      8.
