Leviton RJ12 6P6C Keystone

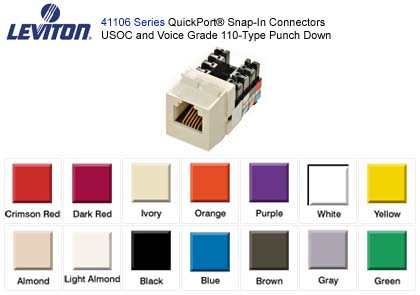

Jack 41106 Series USOC & Voice Grade QuickPort Snap-In 110-Type Punch Down KeyJack (Key Stone Jack) KS-6P6CPD-xxx-xx Products Family: > 41106-RA6 - Almond > 41106-RT6 - Almond (Light Almond) > 41106-RE6 - Black > 41106-RL6 - Blue > 41106-RB6 - Brown > 41106-RG6 - Gray > 41106-RV6 - Green > 41106-RI6 - Ivory > 41106-RO6 - Orange > 41106-RP6 - Purple > 41106-RC6 - Red (Crimson Red) > 41106-RR6 - Red (Dark Red) > 41106-RW6 - White > 41106-RY6 - Yellow Product Features: > Module Style: Connector > Module Type: USOC Voice Grade > Position / Conductor: 6P6C > Cable Type: 6-Conductor UTP Copper USOC > Termination Type: 110 Punchdown > Contact Surface Material: 50 microinches thick Gold-Plated > Contact Sub-Surface Material: 100 microinches thick Nickel-Plated > Contact Base Material: Phosphor Phosphor Bronze > Standards and Certifications: TIA/EIA UL/CSA Listed Features and Benefits: > Leviton's Voice Grade Connector is designed to be used with any QuickPort housing in surface mount, flush mount or modular furniture outlets and all patch panels and patch blocks. > Components meet or exceed the requirements for TIA/EIA Voice Grade applications. > Dual wiring code label allows connector to be wired to either Voice Grade or USOC wiring configurations. > Exclusive cutting ledge combines termination and trim in one labor-saving step. Mechanical Specifications: > Position / Conductor: 6P6C > Termination Type: 110 Punchdown > Cable Type: 6-Conductor UTP Copper USOC Material Specifications: > Contact Surface Material: 50 microinches thick Gold-Plated > Contact Sub-Surface Material: 100 microinches thick Nickel-Plated > Contact Base Material: Phosphor Bronze > Body Material: High-Impact Fire-Retardant Plastic Environmental Specifications: > Flammability: Rated UL94V-0 Performance Specifications: > Module Type: USOC Voice Grade Standards and
Certifications: |
