3.5mm Keyjack ( 1/8" Mini Jack )

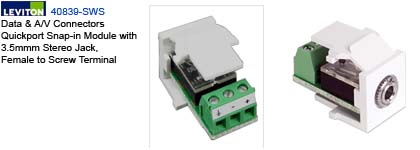

Leviton 40839-SWS Data & A/V Connectors
Quickport Snap-in Module with
3.5mmm Stereo Jack, Female to Screw Terminal
KS-3.5mm-xxx

Link(s):

APPLICATION

3.5mm Stereo or miniature connector used for 3 conductor audio applications. Also referred to as a 1/8" stereo connector, using a tip ring sleeve configuration for signal transmission.

FEATURES

  • QuickPort connector used for stereo audio signals
  • Perfect for classroom workstations or computer stereo applications
  • Compatible with male plugs for headsets
  • Screw terminal connection for quicker field installation

STANDARDS COMPLIANCE

  • UL1863
  • UL 94V-0 rated

PHYSICAL SPECIFICATIONS

  • Dimensions: See PDF Specification Sheet drawing on page 2
  • Materials: Snap-in connector bodies are high-impact, fire-retardant plastic rated UL94V-0
  • Body Colors: Ivory and white

DESIGN CONSIDERATIONS

  • Compatible with 22-24 AWG Shielded Audio Cable
  • Used for balanced audio (or line level stereo) connections
  • The connector housing is available in ivory and white to match housing or wall plates.
  • Not to be installed in telcom circuits

WARRANTY INFORMATION

For a copy of Leviton product warranties, visit www.leviton.com

TYPICAL SPECIFICATION

Connectors shall be QuickPort compatible and offered in white and ivory. Connectors shall be UL listed. All plastics used in construction of the module bodies shall be fire-retardant with a UL flammability rating of 94V-0. The jack shall be nickel plated brass. Connection shall be via shrouded screw terminals accepting p to 22 AWG cable.
