Link(s):

• Rackmount Keyboard Tray 047-WKS-3551 Datasheet

Feature(s):

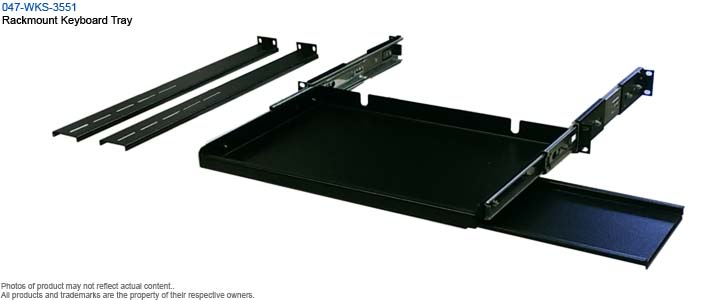

• Rackmount Keyboard Tray / Keyboard Drawer
• Manufacturer: N/A
• Brand: Unbranded
• P/N: 047-WKS-3551
• UPC: 845643000617
• Application: for 19" Rack Mount 2-post Rack / 4-post Rack / Cabinet / Wall Mount Rack
• Requirements:
  • At lease 2U Rack Space (1U = 1-3/4 inch)
    Keyboard Tray overall height: 2-1/4 inch with Mouse Tray
    Keyboard Tray overall height 2 inch without Mouse Tray
  • At least 11-7/8 inch Depth Clearance required
  • For 2-post mounting: Use Front Brackets only
  • For 4-post mounting (Use both Front and Rear Brackets):
    Arm Span 10-1/2 ~ 13-1/8 inch when using Short 4-8/3 inch Rear Brackets, or
    Arm Span 25 ~ 29-1/4 inch when using Long 20-1/2 inch Rear Brackets
  Usable Area:
  • Keyboard (WxD): 16 x 11-3/4 inch
  • Mouse (WxD): 8-3/4 x 5-7/8 inch
• Drawer Slide-Out: 12 inch
• Weight Capacity: 50 lbs
• Overall Dimension (WxDxH):
  • 19 x 12-5/8 x 2-1/2 inch (with Short 4-8/3 inch Rear Brackets)
  • 19 x 25-1/2 x 2-1/2 inch (with Long 20-1/2 inch Rear Brackets)
• Package Contains:
  • Rack Mount Keyboard Drawer
  • Mouse Tray
  • Sliding Rails
  • 4-8/3 inch Front Mounting Brackets
  • 4-8/3 inch Rear Mounting Brackets
  • 20-1/2 inch Rear Mounting Brackets
  • 8 sets of M6 Machine Screw and Cage Nut
