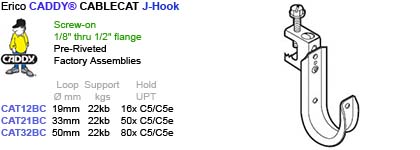

Erico CADDY® CableCat J-Hook
Pre-Riveted Factory Assemblies
Screw-on 1/8" thru 1/2" Flange
CAT12BC, CAT21BC, CAT32BC
 HOOK-CD-CATxxBC

 ERICO offers the CADDY CABLECAT- Wide Base Cable Support as a non-continuous pathway for high-speed communication cables based on the properties of the cables.

 Features:
> Cost-effective alternative to expensive cable tray
> Multiple tree configurations possible
> Galvanized finish on J-hooks provide smoother cable pull and greater corrosion resistance

Applications:
> Provides proper support of high-speed copper or fiber optic cable and innerduct
> Variety of sizes and designs available to attach to virtually any structure or sub-structure
> Complies with UL, cUL, NEC and EIA/TIA requirements for structured cabling systems

Size & Weight Support:

Item No. P/N Loop Ø Protection Pack UL-tested
mm inch Load

CAT12xx

181100

 19 4/3" 1 100 22 kg

CAT21xx

181110

 33 1-15/16" 1 75 22 kg

CAT32xx

181120

 50 2" 1 50 22 kg

CAT64xx

181150

 100 4" 1 25 22 kg

CAT425xx

181130

 100~150   1 20 45 kg

Fill Rate:

Cable Type

 Pair AWG Cable meas. max. CAT12xx CAT21xx CAT32xx CAT64xx CAT425xx

UTP

4

 24 5 mm dia. 16 50 80 300 425

FTP

4

 24 6 mm dia. 11 35 55   300

SFTP

4

 24 6 mm dia. 11 35 55   300

SFTP

4

 23 7 mm dia. 8 25 40   225

F/STP

4

 23 8.5 mm dia. 5 17 27   150

S/STP

4

 23 8.5 mm dia. 5 17 27   150

Products Family:

Item No.

Description

Box Qty

CAT124Z34
CAT214Z34
CAT324Z34

#12 thru 1/4" wire, plain or threaded rod and 1/8" thru 3/8" flange

 60
60
40

CAT126Z34
CAT216Z34
CAT326Z34

3/8" plain or threaded rod and 3/8" thru 9/16" flange

 60
60
40

CAT12VF14
CAT21VF14
CAT32VF14

1/16" thru 1/4" vertical flange

 40
40
40

CAT12AF14
CAT21AF14
CAT32AF14

1/16" thru 1/4" Z purlin

 40
40
40

CAT12BC
CAT21BC
CAT32BC

Screw-on 1/8" thru 1/2" flange

 40
40
40

CAT12BC200
CAT21BC200
CAT32BC200

Screw-on 1/8" thru 5/8" flange

 40
40
20

CAT12BCB
CAT21BCB
CAT32BCB

Screw-on 1/8" thru 1/2" flange–rotates 360°

 40
40
20

CAT12BC200B
CAT21BC200B
CAT32BC200B

Screw-on 1/8" thru 5/8" flange–rotates 360°

 40
40
20

CAT1224SM
CAT2124SM
CAT3224SM

Hammer-on 1/8" thru 1/4" flange

 40
40
40

CAT1258SM
CAT2158SM
CAT3258SM

Hammer-on 5/16" thru 1/2" flange

 40
40
40

CAT12912SM
CAT21912SM
CAT32912SM

Hammer-on 1/2" thru 3/4" flange

 40
40
40

CAT1224
CAT2124
CAT3224

Hammer-on 1/8" thru 1/4" flange – bottom mount rotates 360°

 40
40
40

CAT1258
CAT2158
CAT3258

Hammer-on 5/8" thru 1/2" flange – bottom mount rotates 360°

 40
40
20

CAT12912
CAT21912
CAT32912

Hammer-on 1/2" thru 3/4" flange – bottom mount rotates 360°

 20
20
20

CAT12CPNA
CAT21CPNA
CAT32CPNA

Longer leg Angle bracket

 50
50
50

CAT12AB
CAT21AB
CAT32AB

Angle bracket

80
40
40

CAT21528
CAT32528

Cable to Acoustical Tee Bar

 20
20

CAT12TS

Acoustical tee bar

 60

CAT12CD1B
CAT21CD1B
CAT32CD1B

Under floor support to pedestal

 20
20
20
