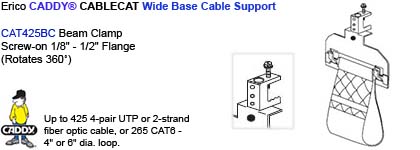

Erico CADDY® CableCat Adjustable Cable Support
CAT425BC Beam Clamp Screw-on
1/8" - 1/2" Flange (Rotates 360˚)
HOOK-CD-CAT425BC

Features:
> Provides proper support of copper and fiber optic cable, as well as innerduct
> Underfloor pedestal assemblies available - contact ERICO
> Attaches to virtually any structure
> Cost-effective alternative to expensive cable tray
> Installation of non-continuous supports saves disassembly of suspended ceiling structure

Application:
> Support for secondary cable runs on ceilings and raised floors

North & Latin America
> Up to 425 cables of 4-pair UTP CAT5e or 2-strand fiber optic or 265 CAT6
> Can be reduced from a 6" diameter to a 4" diameter loop
> Complies with UL®, cUL®, NEC® and EIA/TIA requirements for structured cabling systems.
> Suitable for air handling spaces (plenum).
> Load rate 100 lbs.

Product Family:



Description

Std Box Qty

Adjustable Cable Support

CAT425WM

Wall mount - Vertical surface

10

CAT425

1/4" Threaded rod or horizontal surface mount

10

CAT425A6

3/8" Threaded rod or horizontal surface mount

10

Hammer-On Flange Clip

CAT42524SM

Hammer-on 1/8" - 1/4" flange

10

CAT42558SM

Hammer-on 5/16" - 1/2" flange

10

CAT425912SM

Hammer-on 9/16" - 3/4" flange

10

Beam Clamp

CAT425BC

Screw-on 1/8" - 1/2" flange (rotates 360°)

10

CAT425BC200

Screw-on 1/8" - 5/8" flange (rotates 360°)

10

Purlin

CAT425AF14

Hammer-on 1/16" - 1/4" Z purlin

10

CAT425VF14

Hammer-on 1/16" - 1/4" vertical flange

10

CAT425WMCD1B

Under floor pedestal
