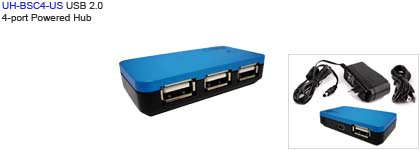

USB 4-port Powered
HUB
UH-BSC4-US
HUB-U2-E4P-UHBSC4US
This High Speed
USB 2.0 4-port Hub can be connected to either the USB 2.0 or the USB 1.1
peripheral devices. User can connect up to a maximum of 127 USB devices
to your PC through daisy-chain. It allows user to connect devices
that consume a great deal of bandwith, such as, external storage
devices, DVD drives, CD-RW drives, MO drives and digital cameras /
camcorders to computers.
Features:
-
Windows 98
or higher, Mac OS compatible
-
Compliant
with Universal Serial Bus Specification Ver 2.0 (Data 480 Mbps) and
ver 1.1 (Data Rate 1.5Mbps/12Mbps)
-
4 external
auto speed selectable USB Type A downstream ports
-
Connects
up to a maximum of 127 USB devices through cascading multiple hubs
-
Support
Plug & Play and hot swap
Spec.:
|
PC Port |
1 |
|
USB Device
Port |
4 |
|
PC Port LED |
Power |
1x Red |
|
Console
Connector |
Upstream |
1x USB Type
Mini-B |
|
Downstream |
4x USB Type A |
|
Power |
1x DC Jack
(for Self Power) |
|
Operating
System |
Windows, Mac |
|
USB Power |
Bus / Self
Power |
|
Operation
Voltage / Current |
DC 5V / 0.1A |
|
Max Power
Dissipation |
0.64W |
|
Operation
Temperature |
0°C~60°C |
|
Storage
Temperature |
-20°C~60°C |
|
Package
Contains |
USB Hub x1,
Cable x1, Power Adapter x1 |
|
Power Adapter
(Optional) |
DC 5V / 2.6A |
|
