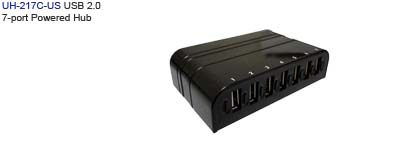

USB 7-port
HUB
UH-217C-US Bus / Self Powered
HUB-U2-E7P-UH217C
Features / Specifications:
The USB 2.0 7-port
hub it specially design for Multi-TT(Transaction Translator)
function mode is the main traffic control engine in an USB 2.0 hub
to handle the unbalanced traffic speed between the upstream port and
the downstream ports. and fastest way to connect USB devices
to your PC or Macintash computer. It allaws you to daisy chain up to
127 devices includeing digital cameras. Ethernet adapters , Mondems
, Printers , Mice , Keyboards, Scanners, and portable data storage
devices .
Benefits:
-
Compatible with USB specification version 2.0 and 1.1
-
Built-in Multi-TT mode function
-
7 external auto speed selectable
USB type A downstream ports.
-
Connect up to a maximum of 127 USB
devices through cascading multiple Hubs .
-
Supports plug & play and
hot-swapping.
-
Over current detection and
protection.
Requirements:
-
Windows 98SE, 2000, ME, XP, Vista
-
Mac. OS 8.6 or later
-
Computer with USB
1.1 or 2.0 connectors
Package Contents:
-
Insert card with 2 piece clamshell
-
1 x
7 ports Unit
-
1 x
USB 2.0 A to B 5 feet cable
-
1 x
Switching power adapter 5V 2.6A
UPC
Code : 858536000434
Specifications:
|
Model No. |
UH-217C-US |
|
Upstream Port |
1 x USB Type B (F) |
|
Downstream Port |
7 x USB Type A (F) |
|
LED's |
7 x USB ports 1 x Power |
|
Port Selection |
N/A |
|
Operation Temperature |
0℃~60℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Power Mode |
Bus power |
|
Operating System |
Windows98/SE,2000,XP,Vista, Mac OS 9x or Higher
|
|
Unit Weight |
3 oz |
|
Unit Dimensions |
95 x 60 x 23 (mm) |
|
Package |
Insert card with 2 piece Clamshell |
|
Package Weight |
0.8 lbs |
|
Package Dimensions |
9.13 x 6.23 x 3.63( in) |
|
Master Carton Quantity |
20 piece |
|
Mater Carton Weight |
18 lbs |
|
Master Carton Dimensions |
18.13 x 9.9 x 13.88 (in) |
|
