Passive CPU Cooler Copper Heatsink (Heat-Sink)

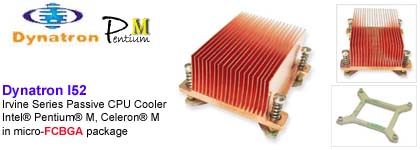

Dynatron (Top Motor) Irvine Series i52 Passive CPU Cooler
Intel® recommended Pentium® M & Celeron® M in micro-FCBGA package

Model Number: Dynatron Irvine Series I52
Application: Intel® recommended Pentium® M Processor & Celeron® M processors in micro-FCPGA package
Overall Dimension: 50 x 50 x 25 mm
Thermal Compound: ----
Weight: 162 g

Heat Sink Dimension: 50 x 50 x 25 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.080 mm
Thickness of Fin: 0.50 mm
Number of Fin: 19
Height of Fin: 22.00 mm
Height of Base: 3.00 mm
Length of Base: 50.0 mm
