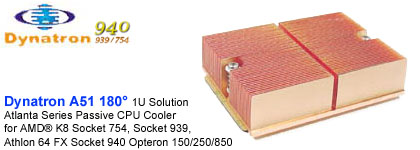

Copper Heatsink (Heat-Sink) for 1U Server
Dynatron (Top Motor) Atlanta Series A51 180°
for AMDŽ K8 Socket 754, Socket 939,
Athlon 64 FX Socket 940 Opteron 150/250/850

Model Number: Dynatron Atlanta Series A51
Application: AMDŽ K8 Socket 754, Socket 939 and Athlon 64 FX socket 940 for Opteron 150/250/850
Overall Dimension: 100 x 74 x 24 mm
Weight: 572 g

Heat Sink Dimension: 100 x 74 x 24 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.50 mm
Thickness of Fin: 0.40 mm
Number of Fin: 49
Height of Fin: 21.00 mm
Height of Base: 3.00 mm
Length of Base: 74.0 mm
