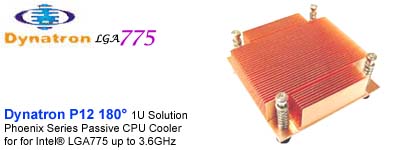

Copper Heatsink (Heat-Sink) for 1U Server
Dynatron (Top Motor) Phoenix Series P12 180°
for Intel® LGA775 up to 3.6GHz

Model Number: Dynatron Phoenix Series P21
Application: Intel® LGA775 up to 3.6GHz
Overall Dimension: 92 x 90 x 26.5 mm
Thermal Compound: Shin-Etsu G751 Thermal Compound
Weight: 590 g

Heat Sink Dimension: 90 x 92 x 26.5 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.50 mm
Thickness of Fin: 0.50 mm
Number of Fin: 46
Height of Fin: 20.00 mm
Height of Base: 2.30 mm
Length of Base: 92.0 mm
