Passive CPU Cooler 1U Solution
Copper Heatsink (Heat-Sink) for 1U Server

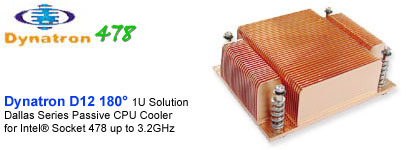

Dynatron (Top Motor) Dallas Series D12 180°
for Socket 478

Model Number: Dynatron Dallas Series D12
Application: Intel® P4 Socket 478 up to 3.2GHz for 1U server
Overall Dimension: 95 x 74 x 28 mm
Thermal Compound: ----
Weight: 585 g

Heat Sink Dimension: 95 x 74 x 28 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.00 mm
Thickness of Fin: 0.50 mm
Number of Fin: 41
Height of Fin: 24.00 mm
Height of Base: 3.00 mm
Length of Base: 74.0 mm
