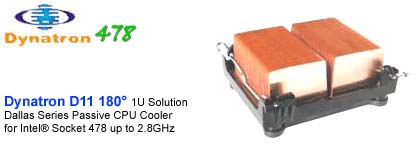

Passive CPU Cooler 1U Solution
Copper Heatsink (Heat-Sink) for 1U Server
Dynatron (Top Motor) Dallas Series D11 180°
for Socket 478

Model Number: Dynatron Dallas Series D11
Application: Intel® Socket 478 up to 2.8GHz for 1U server
Overall Dimension: 89.5 x 66 x 25  mm
Thermal Compound: ----
Weight: 454 g

Heat Sink Dimension: 89.5 x 66 x 25 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.7 mm
Thickness of Fin: 0.55 mm
Number of Fin: 39
Height of Fin: 20.85 mm
Height of Base: 3.73 mm
Length of Base: 88.79 mm
