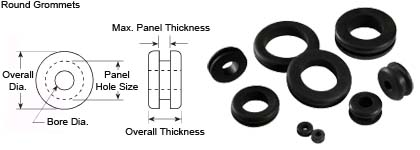

Round Grommet
GRM-xxx
Options:
|
x |
Material |
Panel Hole Size |
Max. Panel
Thickness |
Bore Dia. |
Overall Dia. |
Overall Thickness |
|
1 |
Rubber |
6.4 mm |
1/4" |
1.6 mm |
1/16" |
3.2 mm |
1/8" |
8.7 mm |
11/32" |
4.8 mm |
3/16" |
|
2 |
Rubber |
7.1 mm |
9/32" |
2.4 mm |
3/32" |
4.8 mm |
3/16" |
11.1 mm |
7/16" |
5.6 mm |
7/32" |
|
3 |
Rubber |
7.9 mm |
5/16" |
1.6 mm |
1/16" |
4.8 mm |
3/16" |
12.7 mm |
1/2" |
6.4 mm |
1/4" |
|
4 |
Rubber |
7.9 mm |
5/16" |
2.4 mm |
3/32" |
4.8 mm |
3/16" |
11.1 mm |
7/16" |
6.4 mm |
1/4" |
|
5 |
Rubber |
7.9 mm |
5/16" |
3.2 mm |
1/8" |
4.8 mm |
3/16" |
11.1 mm |
7/16" |
7.9 mm |
5/16" |
|
6 |
Rubber |
9.5 mm |
3/8" |
1.6 mm |
1/16" |
3.2 mm |
1/8" |
12.7 mm |
1/2" |
7.9 mm |
5/16" |
|
7 |
Rubber |
9.5 mm |
3/8" |
1.6 mm |
1/16" |
6.4 mm |
1/4" |
14.3 mm |
9/16" |
7.1 mm |
9/32" |
|
8 |
Rubber |
9.5 mm |
3/8" |
2.4 mm |
3/32" |
6.4 mm |
1/4" |
12.7 mm |
1/2" |
6.4 mm |
1/4" |
|
9 |
Rubber |
11.1 mm |
7/16" |
1.6 mm |
1/16" |
7.9 mm |
5/16" |
14.3 mm |
9/16" |
6.4 mm |
1/4" |
|
10 |
Rubber |
11.1 mm |
7/16" |
1.6 mm |
1/16" |
7.9 mm |
5/16" |
15.9 mm |
5/8" |
7.1 mm |
9/32" |
|
11 |
Rubber |
11.1 mm |
7/16" |
2.4 mm |
3/32" |
7.9 mm |
5/16" |
15.9 mm |
5/8" |
7.9 mm |
5/16" |
|
12 |
Rubber |
11.1 mm |
7/16" |
4.8 mm |
3/16" |
6.4 mm |
1/4" |
15.9 mm |
5/8" |
4.8 mm |
3/16" |
|
13 |
Rubber |
12.7 mm |
1/2" |
1.6 mm |
1/16" |
9.5 mm |
3/8" |
15.9 mm |
5/8" |
6.4 mm |
1/4" |
|
14 |
Rubber |
14.3 mm |
9/16" |
1.6 mm |
1/16" |
7.9 mm |
5/16" |
20.6 mm |
13/16" |
7.9 mm |
5/16" |
|
15 |
Rubber |
14.3 mm |
9/16" |
1.6 mm |
1/16" |
11.1 mm |
7/16" |
19.1 mm |
3/4" |
6.4 mm |
1/4" |
|
16 |
Rubber |
15.9 mm |
5/8" |
1.6 mm |
1/16" |
9.5 mm |
3/8" |
22.2 mm |
7/8" |
7.9 mm |
5/16" |
|
17 |
Rubber |
17.5 mm |
11/16" |
1.6 mm |
1/16" |
11.1 mm |
7/16" |
23.8 mm |
15/16" |
7.9 mm |
5/16" |
|
18 |
Rubber |
19.1 mm |
3/4" |
2.4 mm |
3/32" |
12.7 mm |
1/2" |
22.2 mm |
7/8" |
8.7 mm |
11/32" |
|
19 |
Rubber |
20.6 mm |
13/16" |
1.6 mm |
1/16" |
12.7 mm |
1/2" |
27.0 mm |
1-1/16" |
7.9 mm |
5/16" |
|
20 |
Rubber |
20.6 mm |
13/16" |
1.6 mm |
1/16" |
14.3 mm |
9/16" |
27.0 mm |
1-1/16" |
7.9 mm |
5/16" |
|
21 |
Rubber |
22.2 mm |
7/8" |
1.6 mm |
1/16" |
15.9 mm |
5/8" |
28.6 mm |
1-1/8" |
7.9 mm |
5/16" |
|
22 |
Rubber |
27.0 mm |
1-1/16" |
1.6 mm |
1/16" |
19.1 mm |
3/4" |
34.9 mm |
1-3/8" |
9.5 mm |
3/8" |
|
23 |
Rubber |
31.8 mm |
1-1/4" |
1.6 mm |
1/16" |
12.7 mm |
1/2" |
38.1 mm |
1-1/2" |
6.4 mm |
1/4" |
|
24 |
Rubber |
31.8 mm |
1-1/4" |
1.6 mm |
1/16" |
15.9 mm |
5/8" |
38.1 mm |
1-1/2" |
6.4 mm |
1/4" |
|
25 |
Rubber |
31.8 mm |
1-1/4" |
1.6 mm |
1/16" |
22.2 mm |
7/8" |
41.3 mm |
1-5/8" |
11.1 mm |
7/16" |
|
26 |
Rubber |
36.5 mm |
1-7/16" |
1.6 mm |
1/16" |
19.1 mm |
3/4" |
46.0 mm |
1-13/16" |
9.5 mm |
3/8" |
|
Note: |
|
