System Slot Cooler

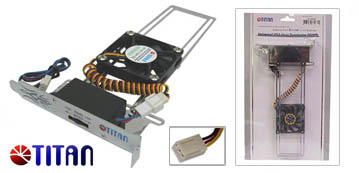

Titan Universal VGA Heat Terminator (UVHT) TTC-SC03TB
FN-SLOT-TTC-SC03

Features:
* Universal VGA Heat Teminator (UVHT) can significantly enhance cooling performance on an existing VGA card.
* UVHT is also a perfect replacement once a VGA cooler fails to function properly.
* The fan's position can be moved up-and-down & right-and-left to provide the maximum heat dissipaton.
* Fan speed can be manually adjusted to achieve ultimate cooling performance or super quite cooling.
* Easy fan replacement.
* Easy installation on a PCI slot
Overall Dimension: 340.0 x 120.0 x 25.0 mm
Fan Dimension: 60x60x10 mm
Rated Voltage: 12.0 V
Rated Current: 0.20 A
Power: 2.40 Watt(s)
Speed: 2400 ~ 4400 rpm
Air Flow: 18.40 CFM
Noise Level: 25.0 ~ 36.64 dBA
 Air Pressure: 2.83 mm-H2O
Bearing: Ball Bearing
Weight: 250 g

Keyword(s) setting:
System Slot Cooler Titan TTC-SC03TB
Titan Fan Card TTC-SC03TB
Universal VGA Heat Terminator ( UVHT ) TTC-SC03TB by Titan

for Reference only:

  • DC Fans usually come in 5V, 12V, 24V or 48V. Computer fans, PC systems fans, CPU cooling fans, Chipset fans, hard drive coolers usually use 12V DC fans or 5V DC fans.
  • Ball Bearings & Sleeve Bearings:  Ball Bearings are better quality bearing option for fans. Ball Bearing Fans last longer but have higher temperature ratings and it is noisier. Manufacturers also make Double Ball Bearing Fans to extend their life circle or Single Ball Bearing Fans to cut the costs. Sleeve Bearing fans are a less expensive and less robust alternative to Ball Bearing fans.
  • Hydrodynamic Bearing ( HDX Hydro Dynamic Technology ): hydrodynamic bearings are fluid film bearings that rely on a film of oil or air to create a clearance between the moving and stationary elements.

  • CFM: Cubic Feet per Minute (airflow).

  • DC Fan Power Connector: Computer fans usually get its power from switching power supply with Molex 4-pin power connector or with 3-pin PC Mother Board connector to be connected to the system's main board. Sometimes the DC Fans also come with different types of 3-pin, 2-pin connectors or just with bare wires.
  • Brushless DC fans: Most computers use brushless DC motors since they are clean (no brushes to create carbon dust or to wear out) and are now smaller and less expensive.
