USB External
Fax Modem
56K V.92 Dial-up
Faxmodem

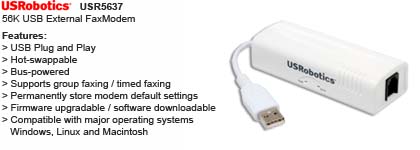

USRobotics USR5637
FM56-USB-USR5637
Overview:
The USRobotics 56K* USB Modem delivers the performance and reliability
USRobotics is known for, in a compact, flexible form factor. This
controller-based modem integrates powerful communications processing
functions into the modem itself, for assured performance without sapping
your computer’s processing power. It is also broadly compatible across
major operating systems including Linux, Windows and Macintosh. Quick
Connect reduces your connection time to get you online quicker, and
V.PCM Upstream provides 50% greater upload speeds — perfect for sending
e-mail messages with large attachments. Also supports USRobotics Modem
on Hold application to screen incoming voice calls while online, and to
answer calls without losing your internet connection – no second phone
line is needed!†
* Capable of receiving at up to 56 Kbps and sending at up to 48 Kbps (or
31.2 Kbps with V.90 server). Due to FCC regulations on power output,
receiving speeds are limited to 53.3 Kbps. Actual speeds may vary. V.92
and V.90 features require compatible phone service and support from your
Internet Service Provider (ISP). USRobotics modems featuring V.92
enhancements are backward compatible and will negotiate the highest
possible speed when connecting to an ISP.
† Call Waiting service required for using USRobotics Modem on Hold
application and Modem on Hold. Call Waiting/ Caller ID service required
for utilizing Caller ID capability.
Features: (High-performance V.92 modem)
>
USB
convenience and ease of use
~ Simple USB Plug and Play installation
~ Hot-swappable (installs/uninstalls automatically)
~ Bus-powered so it doesn’t require an external power supply
> Advanced features and functionality
~ Send and receive faxes through your computer while running other
applications
~ Supports group faxing and timed faxing
~ Permanently store preferred modem default settings
> Get the speed you need - Built-in security protects your
network against hackers
~ Quick Connect reduces the time it takes to establish your dial-up
Internet connection.
~ Need to send digital pictures or a large presentation? V.92 lets
you send attachments up to 50% faster!
> Powerful Management Tools - USRobotics Modem on Hold
application lets you:
~ Screen incoming calls so you can take the important ones†
~ Take calls while online without dropping your Internet connection
– there’s no need for a second phone line
> Software Upgradeable
~ Firmware upgradeable and downloadable software ensure that this
modem will continue to meet your changing needs
> Excellent Compatibility
~ Compatible with most major operating systems, Windows, Linux and
Macintosh
* Capable of receiving at up to 56 Kbps and
sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to FCC
regulations on power output, receiving speeds are limited to 53.3 Kbps.
Actual speeds may vary. V.92 and V.90 features require compatible phone
service and support from your Internet Service Provider (ISP).
USRobotics modems featuring V.92 enhancements are backward compatible
and will negotiate the highest possible speed when connecting to an ISP.
† Call Waiting service required for using USRobotics Modem on Hold
application and Modem on Hold. Call Waiting/ Caller ID service required
for utilizing Caller ID capability.
Specifications & Standards
>
General
~ Data: V.92, V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, and
V.21
~ Data Error Control/Compression: V.44/V.42/V42bis and MNP2-4/5
~ Fax: EIA 578 (Class 1) with V.17, V.29, V.27ter, Group 3
~ V.80 video conferencing support
~ DTE interface: USB Version 2.0
~ USB powered: Typical current from USB supply = 240 mA (1.2W),
Maximum current from USB supply = 360 mA (1.8W)
> Physical
~ 2 LEDs: Power, Data
~ Phone line interface: One RJ-11 socket
~ Caller ID support (requires service from your local phone
company; Caller ID may not be supported in some countries)
> Environmental
~ Temperature:
Operating Temperature conditions: 0 to 50 degrees
C
Non-Operating Temperature conditions: -20 to 70
degrees C
~ Humidity: Operating Humidity conditions:
20% to 80% non-condensing
Non-Operating Humidity conditions: 5% to 95%
noncondensing
> Regulatory
~ FCC approved
~ IC approved
~ UL/CUL listed
~ TBR-21
>
Package Dimensions/Weight
~ 7.88 x 6 x 1.38
in (19.7 x 15.3 x 3.5 cm)
~ .5 lb / .23 kg
>
Product Dimensions
~ 3.88 x 1.5 x .88
in (9.86 x 3.81 x 2.24cm)
~ 0.26 lb (0.12 kg)
>
Language Support
~ Retail box:
English, French, German, Greek, Italian, Spanish
~ Installation guide: English, French, German, Greek, Italian,
Spanish
~ CD ROM User Guide: English, French, German, Greek, Italian,
Spanish
>
Minimum System Requirements
~ Windows®
2000/XP/VistaTM, Mac 10.4 or later and Linux 2.4.20 kernel or higher
~ Intel Pentium III 600 MHz or equivalent, 128 MB RAM, 5 MB hard
drive space
~ USB port
~ 2x or better CD-ROM drive
~ Analogue phone line
>
Package Contents
~ USRobotics 56K*
USB Modem
~ Phone cord
~ Quick Installation Guide
~ Installation Essentials CD-ROM: drivers for
Windows/Macintosh/Linux, user’s guide, data/fax software (Windows only),
and USRobotics
Modem on Hold application (software requires
Windows 2000 or higher)
* Capable of receiving at up to 56 Kbps and
sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to FCC
regulations on power output, receiving speeds are limited to 53.3 Kbps.
Actual speeds may vary. V.92 and V.90 features require compatible phone
service and support from your Internet Service Provider (ISP).
USRobotics modems featuring V.92 enhancements are backward compatible
and will negotiate the highest possible speed when connecting to an ISP.
† Call Waiting service required for using USRobotics Modem on Hold
application and Modem on Hold. Call Waiting/ Caller ID service required
for utilizing Caller ID capability. |
