Hard Drive Fan / System Cooler
5.25" Drive Bay Super HDD Cooler

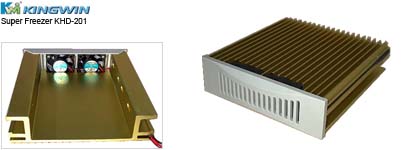

KWI / Kingwin Super Freezer KHD-201
FNH-525-xxx

Features:

• The Whole Aluminum Body Ensuring The Fastest Cooling Effects.

• Fish Scale Style Surface Extend Cool Area.

• High Performance & Quiet Double FANS Bring Excellent Heat Dispersion.

• Streamline External, Beauty and Practical.

• Strengthen Your H.D.D. Reliability and Extend Its LIfe.

• Be Suit to All KInds of High-Speed High-Capacity.

• Easy Installation.

Specifications:

• Type: All Aluminum Body & High Performance Double Fans

• Life: Over 20,000 Hours

• Air Flow: 5.4 CFM x2

• Speed: 50000 RPM

• Voltage: 12V DC

• Power: 0.84W x2

• Bearing Type: Ball Bearing

Installation:

• Put the H.D.D. into Aluminum body, pay attention to the backside downward.

• Take the screw of # 6x8 and screw the H.D.D. tightly.

• Make sure the body back side upward, then push it into the suitable place of PC case.

• Take the screw of # 4x5 and screw the body tightly.

• Connect the fan plug 'H.D.D. Signal Wire' and the power wire.

Warning: Don't install the HDD circuit side to connect the aluminum body to avoid damage.
