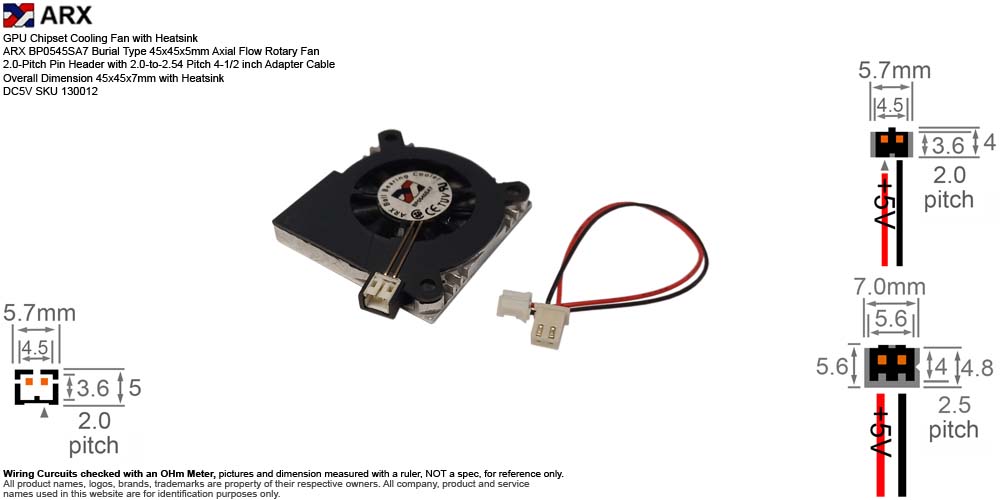

GPU Chipset Cooling Fan with Heatsink
45x45x5mm Burial Type Blower / Micro Axial Flow Rotary Fan
45x45x7mm Overall with Heatsink ARX BP0545SA7 DC5V 0.1~0.2A 0.5~1.0W
2.0mm Pitch 2-Pin Male Pin Header + 2.54mm Pitch 4.5-inch Adapter Cable
SKU 130012
FNCH-ARX-xxx

Features Applications Voltage Amperage RPM CFM dBA Bearing System Frame Impeller Material Part Number Breakdown

  • Description: GPU Chipset Cooling Fan with Heatsink 45x45x5mm Burial Type Blower / Micro Axial Flow Rotary Fan 45x45x7mm Overall with Heatsink ARX BP0545SA7 DC5V 0.1~0.2A 0.5~1.0W 2.0mm Pitch 2-Pin Male Pin Header + 2.54mm Pitch 4.5-inch Adapter Cable SKU 130012
  • Manufacturer: ARX Logic
  • Brand or Distributor: ARX
  • Model:
    • ARX BP0545SA7
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 45x45x5mm Burial Type Blower / Micro Axial Flow Rotary Fan (45x45x7mm overall with Heatsink)
    • Power Rating:  DC5V 0.1~0.2A 0.5~1.0W
    • Bearing: Ball Bearing
    • Speed: 4,500~6,000 RPM
    • Air Flow: 4~6 CFM
    • Noise Level: 22~28 dB(A)
    • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated + Aluminum Heatsink
      • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Connection & Wire Length:
      • 2.0mm Pitch 2-Pin Male Pin Header
      • 2.0mm to 2.54mm Pitch 4.5-inch Adapter Cable (included)
  • Weight: 0.6 oz (estimated shipping weight 6 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
    • SKU ______O - Open Box, Thermal Grease removed, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may have signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (Applications for reference only)
    • The ARX BP0545SA7 is a compact, legacy cooling fan and heatsink assembly primarily designed for cooling low-profile GPU chipsets, vintage video graphics cards, or small form-factor embedded components.
      • Features:
        • Combines a miniature axial flow rotary fan directly with a low-profile aluminum heat sink
      • Applications:
        • Replacement cooling for vintage or low-profile GPU graphics cards
        • Motherboard Northbridge / Southbridge chipset cooling.
        • Small single-board computers (SBCs), DIY embedded routing equipment, or legacy CPU cooling requiring a 5V power rail.
    • ARX BP0545SA7 Part Number Breakdown:
      • 'BP' Standard designator for specific micro axial fan or blower profiles with specialized integrated casings/mounts.
      • '05' Represents the operating voltage prefix (5V DC).
      • '45' Indicates the frame size diameter (45mm)
      • 'SA7' Internal manufacturing code signifying physical thickness variants (5mm core thickness, 7mm overall thickness with matching thermal plate) and specific speed/bearing configurations.
    • Serial Number Available or Sold:
      • SN 0090481 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090482 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090483 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090484 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090485 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090486 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090487 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090488 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090489 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090490 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090491 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090492 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090493 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090494 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090495 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090496 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090497 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090498 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090499 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
      • SN 0090500 Open Box, Thermal Grease removed, may have signs of cosmetic wear.
