GPU
Chipset Cooling Fan with Heatsink
45x45x5mm Burial Type Blower / Micro Axial Flow Rotary Fan
45x45x7mm Overall with Heatsink ARX BP0545SA7 DC5V 0.1~0.2A 0.5~1.0W
2.0mm Pitch 2-Pin Male Pin Header + 1.25mm Pitch 4.5-inch Adapter Cable
SKU 130238
FNCH-ARX-xxx
Features Applications
Voltage Amperage RPM
CFM dBA Bearing System Frame Impeller Material Part Number Breakdown
- Description:
GPU Chipset

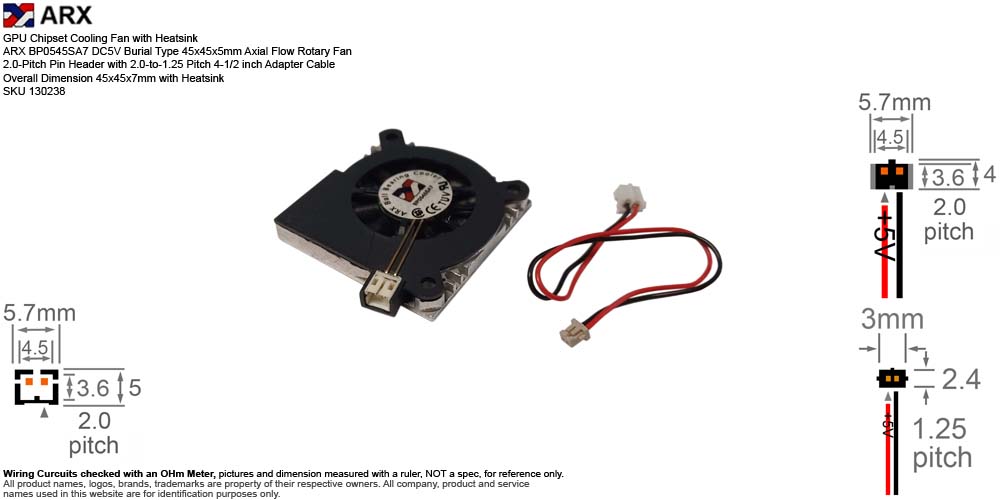

Cooling Fan with Heatsink 45x45x5mm Burial Type Blower / Micro Axial
Flow Rotary Fan 45x45x7mm Overall with Heatsink ARX BP0545SA7 DC5V
0.1~0.2A 0.5~1.0W 2.0mm Pitch 2-Pin Male Pin Header + 1.25mm Pitch
4.5-inch Adapter Cable SKU 130238
- Manufacturer:
ARX Logic
- Brand or
Distributor: ARX
- Model:
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
45x45x5mm Burial Type Blower / Micro Axial Flow Rotary Fan
(45x45x7mm overall with Heatsink)
- Power Rating:
DC5V 0.1~0.2A 0.5~1.0W
- Bearing: Ball Bearing
- Speed:
4,500~6,000 RPM
- Air Flow:
4~6 CFM
- Noise Level:
22~28 dB(A)
- Material:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated + Aluminum Heatsink
-
Frame Housing:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Impeller Blades:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
- Connection
& Wire Length:
- 2.0mm Pitch
2-Pin Male Pin Header
- 2.0mm to
1.25mm Pitch 4.5-inch Adapter Cable (included)
- Weight: 0.6 oz
(estimated shipping weight 6 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, may have signs of cosmetic wear. unused excess inventory, may have signs of cosmetic
wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, Thermal Grease removed, may have signs of cosmetic
wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(Applications for reference only)
- The ARX
BP0545SA7
is a compact, legacy cooling fan and heatsink assembly primarily
designed for cooling low-profile GPU chipsets, vintage video
graphics cards, or small form-factor embedded components.
- Features:
-
Combines a
miniature axial flow rotary fan directly with a low-profile
aluminum heat sink
- Applications:
-
Replacement cooling for vintage or low-profile
GPU graphics cards
-
Motherboard
Northbridge / Southbridge chipset
cooling.
-
Small single-board computers (SBCs), DIY embedded
routing equipment, or legacy CPU cooling requiring a 5V
power rail.
- ARX
BP0545SA7 Part Number Breakdown:
- 'BP'
Standard designator for specific micro axial fan or blower
profiles with specialized integrated casings/mounts.
- '05'
Represents the operating voltage prefix (5V
DC).
-
'45'
Indicates
the frame size diameter (45mm)
-
'SA7'
Internal
manufacturing code signifying physical thickness variants
(5mm core thickness, 7mm overall thickness with matching
thermal plate) and specific speed/bearing configurations.
