Datasheet: Delta BFB1212HH

Features:

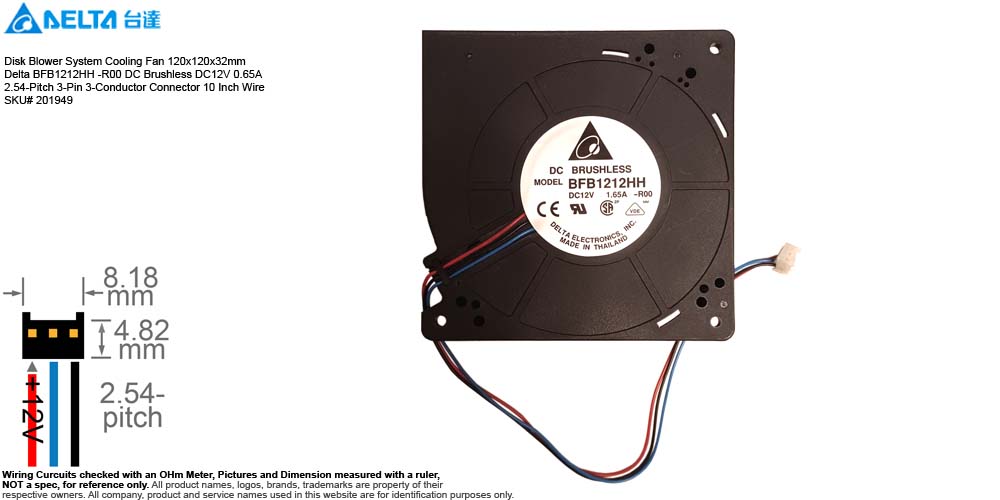

• Description: Disk Blower System Cooling Fan 120x120x32mm Delta BFB1212HH -R00 DC Brushless DC12V 0.65A 2.54-Pitch 3-Pin 3-Conductor Connector 10 Inch Wire SKU# 201949
• Manufacturer: Delta Electronics
• Brand or Distributor: Delta / Cisco Catalyst
• Model:
  • BFB1212HH -R00
• Brief Spec.:
  • Power Rating: DC12V 0.65A
  • Bearing: Two Ball Bearings / Double Ball Bearings
  • Fan Speed: 2800 RPM
  • Air Flow: 32.49 CFM (28.25 CFM Min.)
  • Noise Level: 54 dBA (57 dBA Max.)
• Connector: 2.54-Pitch 3-Pin 3-Conductor
• Overall Wire Length: 10 inch
• Weight: 8.1 oz (Estimated Shipping Weight 12 oz)
• Condition: (Subject to Inventory)
  • SKU# 201949N - New
  • SKU# 201949P - For Parts or Not Working
  • SKU# 201949S - Open Box Sample / New, may have signs of cosmetic wear
  • SKU# 201949U - Used, may have signs of cosmetic wear
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • Pulled from Cisco Catalyst 3550 Intellgent Ethernet Switch
  • Serial Number Available or Sold:
    • 0111771 Used (Sample Picture)
    • 0111771 Used
