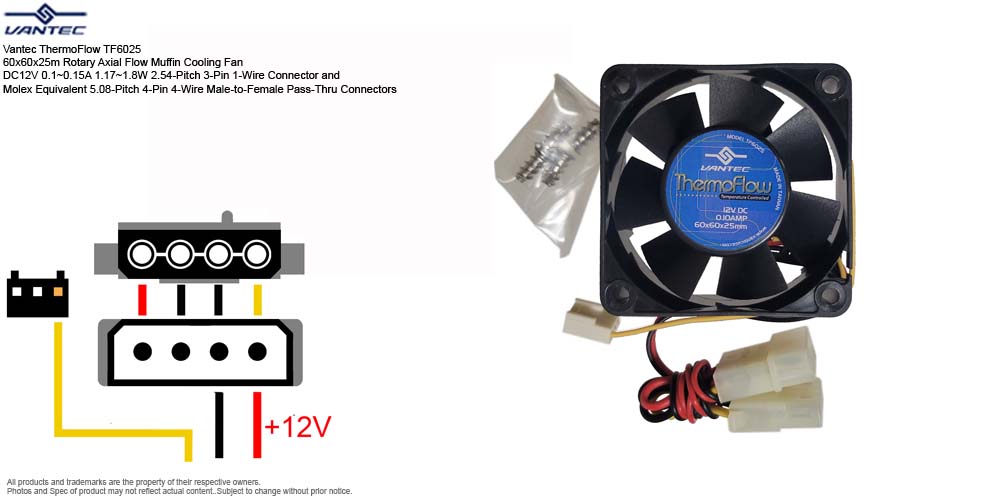

Rotary Axial Flow Muffin Cooling Fan 60x60x25m
Vantec ThermoFlow TF6025
DC12V 0.1~0.15A 1.17~1.8W
2.54-Pitch 3-Pin 1-Wire Connector and
Molex Equivalent 5.08-Pitch 4-Pin 4-Wire
Male-to-Female Pass-Thru Connectors
FN-TH-6025-xxx

Features:

  • Description: Rotary Axial Flow Muffin Cooling Fan 60x60x25m, Vantec ThermoFlow TF6025, DC12V 0.1~0.15A 1.17~1.8W, 2.54-Pitch 3-Pin 1-Wire Connector and Molex Equivalent 5.08-Pitch 4-Pin 4-Wire
    Male-to-Female Pass-Thru Connectors
  • Manufacturer: Vantec
  • Brand or Distributor: Vantec
  • Model: Stealth TF6025
  • Brief Spec.:
    • Size: 60x60x25mm
    • Power Rating: DC12V 0.1~0.15A 1.17~1.8W
    • Bearing: Double Ball Bearing
    • Speed: 1900~4200 RPM
    • Air Flow: 9.9~24.2 CFM
    • Noise: 19~33.5 dBA
  • Connector:
    • 2.54-Pitch 3-Pin 1-Wire Connector
    • Molex Equivalent 5.08-Pitch 4-Pin 4-Wire Male-to-Female Pass-Thru Connectors
  • Wire Length:
    • 12" - from Fan to 3-Pin Female Connector
    • 12" - from Fan to 4-Pin Male Connector
    •   2" - from 4-Pin Male Connector to 4-pin Female Connector
  • Weight: 4.3 oz (estimated shipping weight 6 oz)
  • Condition: New
  • Package: Retail Package
  • For use with or pulled from: (for reference only)
