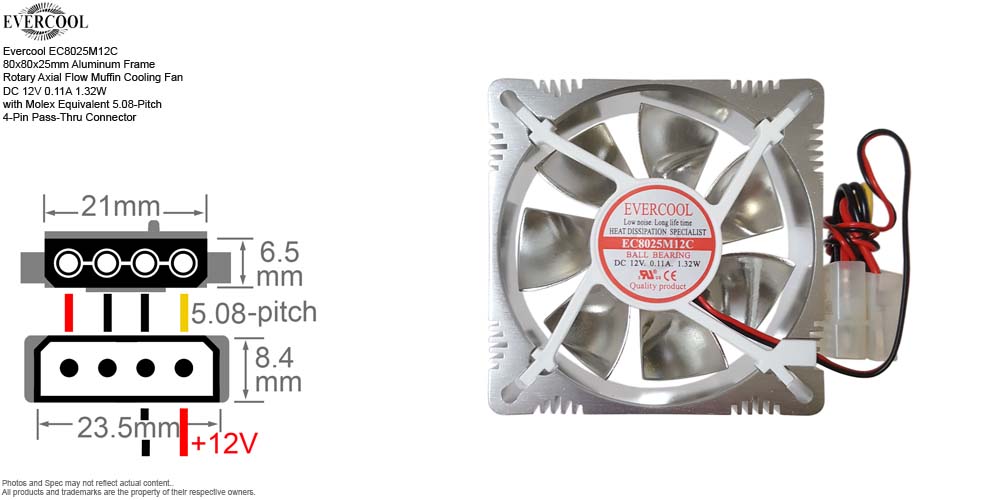

Rotary Axial Flow Muffin Cooling Fan 80x80x25mm
Evercool FN-AL8025B, EC8025M12C 80x80x25mm Aluminum Frame
DC 12V 0.11A 1.32W with Molex Equivalent
5.08-Pitch 4-Pin Pass-Thru Connector
FN-ALU-8025-xxx

Features:

  • Description: Rotary Axial Flow Muffin Cooling Fan 80x80x25mm, Evercool FAN-AL8025B EC8025M12C 80x80x25mm Aluminum Frame, DC 12V 0.11A 1.32W with Molex Equivalent 5.08-Pitch 4-Pin Pass-Thru Connector.
  • Manufacturer: Evercool
  • Brand or Distributor: Evercool
  • Model: FAN8025B
  • MPN: EC8025M12C
  • Size: 80x80x25mm
  • Bearing: Ball Bearing
  • Speed: 2200 RPM
  • Air Flow: 38.35 CFM
  • Noise: <26 dBA
  • Power Rating: DC12V 0.11A 1.32W
  • Connector: Molex Equivalent 5.08-Pitch 4-Pin Pass-Thru Connector.
  • Wire Length:
    • 10 inch: From Fan to Molex Equivalent Male Connector
    • 2 inch: From Molex Equivalent Male to Female Connector
  • Weight: 7 oz (estimated shipping weight 9 oz)
  • Condition: New
  • Package: Retail Package
  • For used with or pulled from: (for reference only)
