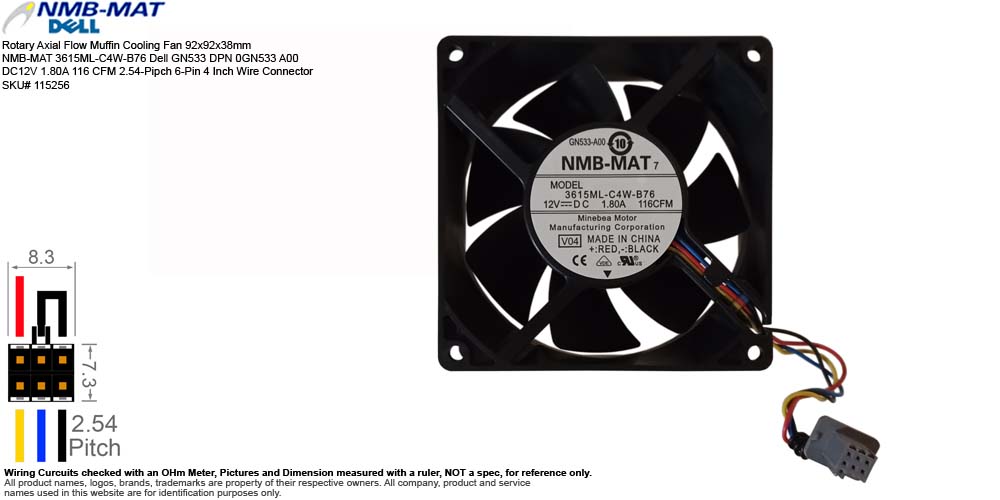

Rotary Axial Flow Muffin Cooling Fan 92x92x25mm
NMB-MAT 3615ML-C4W-B76 Dell GN533 DPN 0GN533 A00
DC12V 1.80A 116 CFM 2.54-Pipch 6-Pin 4 Inch Wire Connector
SKU# 115256
FN-9225-xxx

Features:

  • Description: Rotary Axial Flow Muffin Cooling Fan 92x92x38mm NMB-MAT 3615ML-C4W-B76 Dell GN533 DPN 0GN533 A00 DC12V 1.80A 116 CFM 2.54-Pipch 6-Pin 4 Inch Wire Connector SKU# 115256
  • Manufacturer: NMB-MAT Minebea Motor
  • Brand or Distributor: NMB-MAT Minebea / Dell
  • Model:
    • NMB-MAT 3615ML-C4W-B76
    • Dell GN533 A00
    • DPN 0GN533 A00
  • Brief Spec.:
    • Power Rating: DC12V 1.80A
    • Bearing: Not Specified
    • Fan Speed: Not Specified
    • Air Flow: 116 CFM
    • Noise Level:  Not Specified
  • Connector: 2.54-Pitch 6-Pin 6-Conductor
  • Overall Wire Length: 4 inch
  • Weight: 7.2 oz (Estimated Shipping Weight 10 oz)
  • Condition: (Subject to Inventory)
    • SKU# 115256N - New
    • SKU# 115256P - For Parts or Not Working
    • SKU# 115256S - Open Box Sample / New, may have signs of cosmetic wear
    • SKU# 115256U - Used, may have signs of cosmetic wear
  • Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
  • For use with or pulled from: (for reference only)
    • Pulled from Dell PowerEdge T610 Server Computer.
    • Serial Number Available or Sold:
      • CN-0GN533-37170-05C-0098-A00 Used (Sample Picture)
      • CN-0GN533-37170-05C-0003-A00 Used
