For reference only, photos / specs may not reflect actual content.

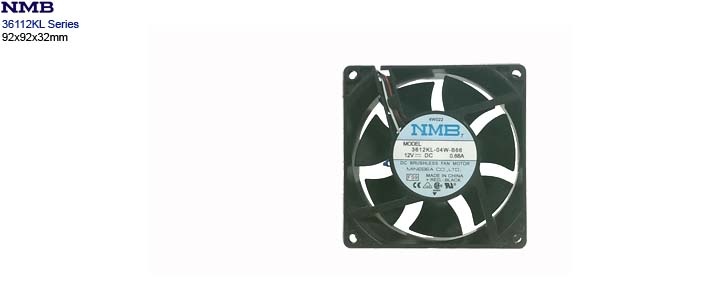

Axial Flow Fan
NMB-MAT ( Minebea-Matsushita )
92x92x32mm 3612KL Series
Thermal Sensor
FN-9232-xxx

Link(s):

Option(s):

# Size (mm)

Make & P/N #

 DC Amp Bearing RPM CFM dBA Note
1 92x92x32 3612KL-04W-B30-x00 12V 0.21 Ball Bearing 2600 40.60 34.00 xxx
2 92x92x32 3612KL-04W-B40-x00 12V 0.31 Ball Bearing 3200 46.60 38.00 xxx
3 92x92x32 3612KL-04W-B50-x00 12V 0.47 Ball Bearing 3800 54.70 43.50 xxx
4 92x92x32 3612KL-04W-B60-x00 12V 0.48 Ball Bearing 4000 61.80 44.00 xxx
5 92x92x32 3612KL-05W-B30-x00 24V 0.10 Ball Bearing 2600 40.60 34.00 xxx
6 92x92x32 3612KL-05W-B40-x00 24V 0.16 Ball Bearing 3200 46.60 38.00 xxx
7 92x92x32 3612KL-05W-B50-x00 24V 0.25 Ball Bearing 3800 54.70 43.50 xxx
8 92x92x32 3612KL-05W-B60-x00 24V 0.23 Ball Bearing 4000 61.80 44.00 xxx
9 xxx xxx xxx xxx xxx xxx xxx xxx xxx
10 xxx xxx xxx xxx xxx xxx xxx xxx xxx
11 xxx xxx xxx xxx xxx xxx xxx xxx xxx
12 xxx xxx xxx xxx xxx xxx xxx xxx xxx

Note:

  • Not all items are available.
