Link(s):

• Sunon AC Axial Flow Fans and Blowers (2008)
• Sunon AC Axial Flow Fans and Blowers (2015)
• Family & Model Numbers:
  • SF11580A 1083HSL.GN
    • Power Rating: 115V 0.13/0.15A
    • Bearing: Sleeve Bearing
    • Fan Speed: 2300~2750RPM
    • Air Flow: 23~30CFM
    • Noise Level: 31~35dBA
  • SF11580A 1083HBL.GN
    • Power Rating: 115V 0.13/0.15A
    • Bearing: Ball Bearing
    • Fan Speed: 2400~2850RPM
    • Air Flow: 24~31CFM
    • Noise Level: 32~36.5dBA
  • SF23080A 1083HSL.GN
    • Power Rating: 220/240V 0.08/0.09A
    • Bearing: Sleeve Bearing
    • Fan Speed: 2300~2750RPM
    • Air Flow: 23~30CFM
    • Noise Level: 31~35dBA
  • SF23080A 1083HBL.GN
    • Power Rating: 220/240V 0.08/0.09A
    • Bearing: Ball Bearing
    • Fan Speed: 2400~2850RPM
    • Air Flow: 24~31CFM
    • Noise Level: 32~36.5dBA

Features:

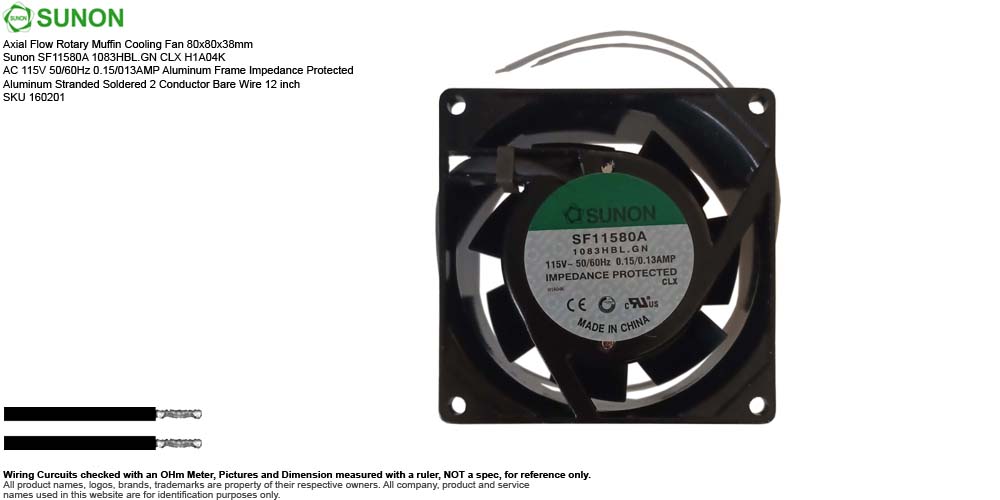

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x38mm Sunon SF11580A 1083HBL.GN CLX H1A04K AC 115V 50/60Hz 0.15/013AMP Aluminum Frame Impedance Protected Aluminum Stranded Soldered 2 Conductor Bare Wire 12 inch SKU 160201
• Manufacturer: Sunon Inc.
• Brand or Distributor: Sunon
• Model:
  • SF11580A
  • 1083HBL.GN CLX
  • H1A04K
• Brief Spec.:
  • Power Rating: AC 115V 50/60Hz 0.15/013AMP
  • Bearing: Ball Bearing
  • Fan Speed: 2400~2850RPM
  • Air Flow: 24~31CFM
  • Noise Level: 32~36.5dBA
  • Connector: Aluminum Stranded Soldered 2 Conductor Bare Wire
  • Overall Wire Length: 12 inch
• Weight: 11.7 oz (Estimated Shipping Weight 15 oz)
• Condition: (Subject to Inventory)
  • SKU 160201N - New
  • SKU 160201P - For Parts or Not Working
  • SKU 160201S - Open Box Sample / New, may have signs of cosmetic wear
  • SKU 160201U - Used, may have signs of cosmetic wear
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • For use in critical environments require sustainable airflow.
  • Serial Number Available or Sold:
    • 0094517 New (Sample Picture)
