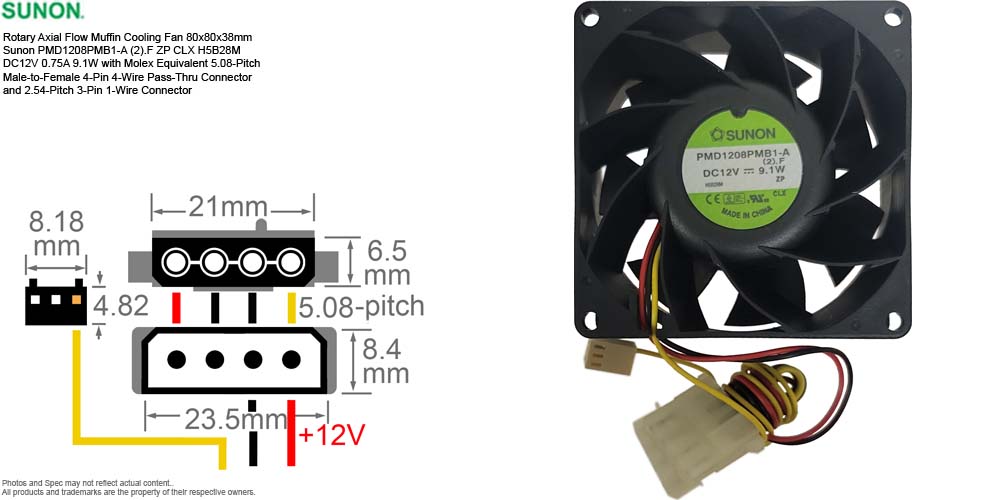

Rotary Axial Flow Muffin Cooling Fan 80x80x38mm
Sunon PMD1208PMB1-A (2).F ZP CLX H5B28M
DC12V 0.75A 9.1W with Molex Equivalent 5.08-Pitch
Male-to-Female 4-Pin 4-Wire Pass-Thru Connector
and 2.54-Pitch 3-Pin 1-Wire Connector
FN-8038-xxx

Features:

  • Description: Rotary Axial Flow Muffin Cooling Fan 80x80x38mm, Sunon PMD1208PMB1-A (2).F ZP CLX H5B28M, DC12V 0.75A 9.1W with Molex Equivalent 5.08-Pitch Male-to-Female 4-Pin 4-Wire Pass-Thru Connector and 2.54-Pitch 3-Pin 1-Wire Connector
  • Manufacturer: Sunon
  • Brand or Distributor: Sunon
  • Model Number: PMD1208PMB1-A (2).F ZP CLX H5B28M
  • Size: 80x80x38mm
  • Power Rating:  DC12V 0.75A 9.1W
  • Wire Length:
    • 12-inch: from Fan to 2.54-Pitch 3-Pin 1-Wire Connector
    • 12-inch: from Fan to Molex Equivalent Male 4-Pin Connector
    • 2-inch: from Molex Equivalent Male 4-Pin to Female Connector
  • Connector:
    • Molex Equivalent 5.08-Pitch 4-Pin 4-Wire Pass-Thru Connector
    • 2.54-Pitch 3-Pin 1-Conductor Computer Sensor Connector
  • Weight: 6.5 oz (estimated shipping weight 10 oz)
  • Condition: New
  • Package: Non-retail packaging, in unprinted box or plastic bag.
