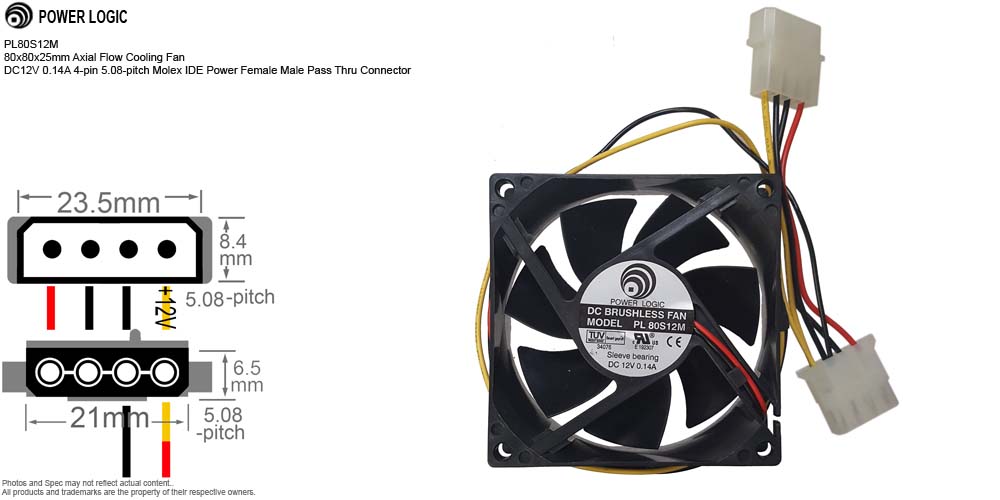

Axial Flow Muffin Fan 80x80x25mm
Power Logic PL80S12M
DC12V 0.14A with Molex 5.08-pitch 4-pin IDE Power Female Male Pass-Thru Connectors
FN-8025-xxx

Features:

  • Description: Axial Flow Muffin Fan 80x80x25mm, Power Logic PL80S12M, DC12V 0.14A with Molex 5.08-pitch 4-pin IDE Power Female Male Pass-Thru Connectors
  • Manufacturer: Power Logic
  • Brand or Distributor: Power Logic
  • Model: PL80S12M
  • Size: 80x80x25mm
  • Power Rating: DC12V 0.14A
  • Connector:
    • 4-pin Molex 5.08-pitch 4-pin IDE Power Female Connector
    • 4-pin Molex 5.08-pitch 4-pin IDE Power Male Connector
  • Wire Length: 10.5 inch (overall)
    • 22.5 inch: from fan to 5.08-pitch Molex equivalent IDE Power (Female)
    • 3 inch: from 5.08-pitch Molex Power (Female) to Molex Power (Male)
  • Weight: 3.1 oz (estimated shipping weight 5 oz)
  • Condition: Seller Refurbished, may have signs of cosmetic wear.
  • Package: Non-retail packaging, in unprinted box or plastic bag.
    • Pulled and cut the wire from Computer Power Supply then spliced to Molex Pass-thru Connectors.



  • For used with or pulled from: (for reference only)
    • Pulled from retired Computer
