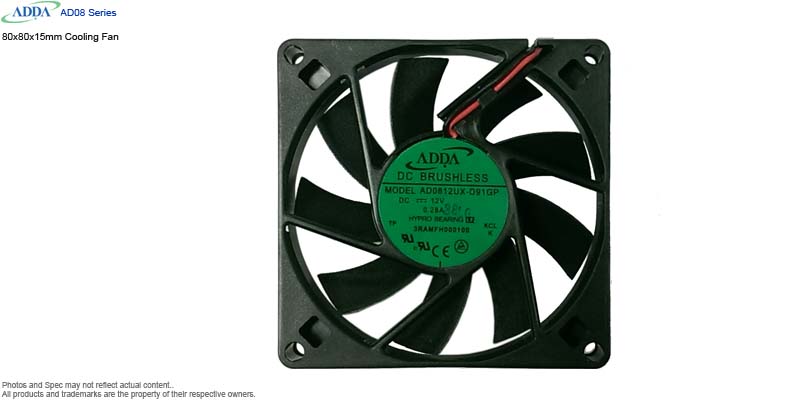

80x80x15mm Cooling Fan
ADDA 80x80x15mm AD08 Series
FN-xxx

Link(s):

Specification:

# Make & P/N # DC Amp Bearing RPM CFM dBA Note
1 AD0805HB-D73(N) 5 0.22 Ball Bearing 3200 29.722 34.4 xxx
2 AD0805HB-D73(N) 5 0.22 Sleeve Bearing 3200 29.722 34.4 xxx
3 AD0805HB-D73(N) 5 0.22 Hypro Bearing 3200 29.722 34.4 xxx
4 AD0805MB-D73(N) 5 0.13 Ball Bearing 2440 21.805 24.9 xxx
5 AD0805MB-D73(N) 5 0.13 Sleeve Bearing 2440 21.805 24.9 xxx
6 AD0805MB-D73(N) 5 0.13 Hypro Bearing 2440 21.805 24.9 xxx
7 AD0812DB-D96(T) 12 0.07 Ball Bearing 2500 24.958 30.2 xxx
8 AD0812DB-D96(T) 12 0.07 Sleeve Bearing 2500 24.958 30.2 xxx
9 AD0812DB-D96(T) 12 0.07 Hypro Bearing 2500 24.958 30.2 xxx
10 AD0812HB-D73(N75) 12 0.11 Ball Bearing 3200 29.722 34.4 xxx
11 AD0812HB-D73(N75) 12 0.11 Sleeve Bearing 3200 29.722 34.4 xxx
12 AD0812HB-D73(N75) 12 0.11 Hypro Bearing 3200 29.722 34.4 xxx
13 AD0812HB-D76(T) 12 0.11 Ball Bearing 3200 29.722 34.4 xxx
14 AD0812HB-D76(T) 12 0.11 Sleeve Bearing 3200 29.722 34.4 xxx
15 AD0812HB-D76(T) 12 0.11 Hypro Bearing 3200 29.722 34.4 xxx
16 AD0812HB-D7B(NS75) 12 0.09 Ball Bearing 3500 31.500 36.5 xxx
17 AD0812HB-D7B(NS75) 12 0.09 Sleeve Bearing 3500 31.500 36.5 xxx
18 AD0812HB-D7B(NS75) 12 0.09 Hypro Bearing 3500 31.500 36.5 xxx
19 AD0812HB-D93GP 12 0.13 Ball Bearing 3000 35.522 35.3 xxx
20 AD0812HB-D93GP 12 0.13 Sleeve Bearing 3000 35.522 35.3 xxx
21 AD0812HB-D93GP 12 0.13 Hypro Bearing 3000 35.522 35.3 xxx
22 AD0812HB-D96(T) 12 0.20 Ball Bearing 4000 40.111 44.5 xxx
23 AD0812HB-D96(T) 12 0.20 Sleeve Bearing 4000 40.111 44.5 xxx
24 AD0812HB-D96(T) 12 0.20 Hypro Bearing 4000 40.111 44.5 xxx
25 AD0812LB-D73(N75) 12 0.04 Ball Bearing 2000 18.335 18.8 xxx
26 AD0812LB-D73(N75) 12 0.04 Sleeve Bearing 2000 18.335 18.8 xxx
27 AD0812LB-D73(N75) 12 0.04 Hypro Bearing 2000 18.335 18.8 xxx
28 AD0812LB-D76(T) 12 0.06 Ball Bearing 2000 18.335 18.8 xxx
29 AD0812LB-D76(T) 12 0.06 Sleeve Bearing 2000 18.335 18.8 xxx
30 AD0812LB-D76(T) 12 0.06 Hypro Bearing 2000 18.335 18.8 xxx
31 AD0812LB-D7B(NS75) 12 0.05 Ball Bearing 2500 22.950 25.8 xxx
32 AD0812LB-D7B(NS75) 12 0.05 Sleeve Bearing 2500 22.950 25.8 xxx
33 AD0812LB-D7B(NS75) 12 0.05 Hypro Bearing 2500 22.950 25.8 xxx
34 AD0812LB-D93GP 12 0.07 Ball Bearing 2000 22.635 22.1 xxx
35 AD0812LB-D93GP 12 0.07 Sleeve Bearing 2000 22.635 22.1 xxx
36 AD0812LB-D93GP 12 0.07 Hypro Bearing 2000 22.635 22.1 xxx
37 AD0812LB-D96(T) 12 0.10 Ball Bearing 3000 29.581 36.0 xxx
38 AD0812LB-D96(T) 12 0.10 Sleeve Bearing 3000 29.581 36.0 xxx
39 AD0812LB-D96(T) 12 0.10 Hypro Bearing 3000 29.581 36.0 xxx
40 AD0812MB-D73(N75) 12 0.05 Ball Bearing 2440 21.805 24.9 xxx
41 AD0812MB-D73(N75) 12 0.05 Sleeve Bearing 2440 21.805 24.9 xxx
42 AD0812MB-D73(N75) 12 0.05 Hypro Bearing 2440 21.805 24.9 xxx
43 AD0812MB-D76(T) 12 0.08 Ball Bearing 2440 21.805 24.9 xxx
44 AD0812MB-D76(T) 12 0.08 Sleeve Bearing 2440 21.805 24.9 xxx
45 AD0812MB-D76(T) 12 0.08 Hypro Bearing 2440 21.805 24.9 xxx
46 AD0812MB-D7B(NS75) 12 0.07 Ball Bearing 3000 28.629 30.9 xxx
47 AD0812MB-D7B(NS75) 12 0.07 Sleeve Bearing 3000 28.629 30.9 xxx
48 AD0812MB-D7B(NS75) 12 0.07 Hypro Bearing 3000 28.629 30.9 xxx
49 AD0812MB-D93GP 12 0.11 Ball Bearing 2500 28.906 29.6 xxx
50 AD0812MB-D93GP 12 0.11 Sleeve Bearing 2500 28.906 29.6 xxx
51 AD0812MB-D93GP 12 0.11 Hypro Bearing 2500 28.906 29.6 xxx
52 AD0812MB-D96(T) 12 0.14 Ball Bearing 3500 34.897 40.4 xxx
53 AD0812MB-D96(T) 12 0.14 Sleeve Bearing 3500 34.897 40.4 xxx
54 AD0812MB-D96(T) 12 0.14 Hypro Bearing 3500 34.897 40.4 xxx
55 AD0812UB-D73(N75) 12 0.16 Ball Bearing 3800 34.338 38.1 xxx
56 AD0812UB-D73(N75) 12 0.16 Sleeve Bearing 3800 34.338 38.1 xxx
57 AD0812UB-D73(N75) 12 0.16 Hypro Bearing 3800 34.338 38.1 xxx
58 AD0812UB-D7B(NS75) 12 0.14 Ball Bearing 4000 36.751 39.6 xxx
59 AD0812UB-D7B(NS75) 12 0.14 Sleeve Bearing 4000 36.751 39.6 xxx
60 AD0812UB-D7B(NS75) 12 0.14 Hypro Bearing 4000 36.751 39.6 xxx
61 AD0812UB-D93GP 12 0.18 Ball Bearing 3500 40.69 39.7 xxx
62 AD0812UB-D93GP 12 0.18 Sleeve Bearing 3500 40.69 39.7 xxx
63 AD0812UB-D93GP 12 0.18 Hypro Bearing 3500 40.69 39.7 xxx
64 AD0812UB-D96(T) 12 0.26 Ball Bearing 4500 45.019 48.0 xxx
65 AD0812UB-D96(T) 12 0.26 Sleeve Bearing 4500 45.019 48.0 xxx
66 AD0812UB-D96(T) 12 0.26 Hypro Bearing 4500 45.019 48.0 xxx
67 AD0812UX-D91GP 12 0.28 Hypro Bearing xxx xxx xxx w/ 2P7 Plug
68 AD0812VB-D7B(NS75) 12 0.23 Ball Bearing 5000 46.000 46.5 xxx
69 AD0812XB-D7B(NS75) 12 0.18 Ball Bearing 4500 41.775 43.4 xxx
70 AD0812XB-D7B(NS75) 12 0.18 Sleeve Bearing 4500 41.775 43.4 xxx
71 AD0812XB-D7B(NS75) 12 0.18 Hypro Bearing 4500 41.775 43.4 xxx
72 AD0812XB-D93GP 12 0.29 Ball Bearing 4000 46.353 42.7 xxx
73 AD0812XB-D93GP 12 0.29 Sleeve Bearing 4000 46.353 42.7 xxx
74 AD0812XB-D93GP 12 0.29 Hypro Bearing 4000 46.353 42.7 xxx
75 AD0824DB-D96(T) 24 0.04 Ball Bearing 2500 24.958 30.2 xxx
76 AD0824DB-D96(T) 24 0.04 Sleeve Bearing 2500 24.958 30.2 xxx
77 AD0824DB-D96(T) 24 0.04 Hypro Bearing 2500 24.958 30.2 xxx
78 AD0824HB-D73(NEUM) 24 0.08 Ball Bearing 3200 29.722 34.4 xxx
79 AD0824HB-D73(NEUM) 24 0.08 Sleeve Bearing 3200 29.722 34.4 xxx
80 AD0824HB-D73(NEUM) 24 0.08 Hypro Bearing 3200 29.722 34.4 xxx
81 AD0824HB-D96(T) 24 0.10 Ball Bearing 4000 40.111 44.5 xxx
82 AD0824HB-D96(T) 24 0.10 Sleeve Bearing 4000 40.111 44.5 xxx
83 AD0824HB-D96(T) 24 0.10 Hypro Bearing 4000 40.111 44.5 xxx
84 AD0824LB-D96(T) 24 0.05 Ball Bearing 3000 29.581 36.0 xxx
85 AD0824LB-D96(T) 24 0.05 Sleeve Bearing 3000 29.581 36.0 xxx
86 AD0824LB-D96(T) 24 0.05 Hypro Bearing 3000 29.581 36.0 xxx
87 AD0824MB-D73(NEUM) 24 0.05 Ball Bearing 2440 21.805 24.9 xxx
88 AD0824MB-D73(NEUM) 24 0.05 Sleeve Bearing 2440 21.805 24.9 xxx
89 AD0824MB-D73(NEUM) 24 0.05 Hypro Bearing 2440 21.805 24.9 xxx
90 AD0824MB-D96(T) 24 0.06 Ball Bearing 3500 34.897 40.4 xxx
91 AD0824MB-D96(T) 24 0.06 Sleeve Bearing 3500 34.897 40.4 xxx
92 AD0824MB-D96(T) 24 0.06 Hypro Bearing 3500 34.897 40.4 xxx
93 AD0824UB-D73(NEUM) 24 0.08 Ball Bearing 3800 34.338 38.1 xxx
94 AD0824UB-D73(NEUM) 24 0.08 Sleeve Bearing 3800 34.338 38.1 xxx
95 AD0824UB-D73(NEUM) 24 0.08 Hypro Bearing 3800 34.338 38.1 xxx
96 AD0824UB-D73(NEUM) 24 0.08 Ball Bearing 3800 34.338 38.1 xxx
97 AD0824UB-D73(NEUM) 24 0.08 Sleeve Bearing 3800 34.338 38.1 xxx
98 AD0824UB-D73(NEUM) 24 0.08 Hypro Bearing 3800 34.338 38.1 xxx
99 AD0824UB-D96(T) 24 0.14 Ball Bearing 4500 45.019 48.0 xxx
100 AD0824UB-D96(T) 24 0.14 Sleeve Bearing 4500 45.019 48.0 xxx
101 AD0824UB-D96(T) 24 0.14 Hypro Bearing 4500 45.019 48.0 xxx
102 AD0824XB-D73(NEUM) 24 0.10 Ball Bearing 4300 39.300 42.3 xxx
103 AD0824XB-D73(NEUM) 24 0.10 Sleeve Bearing 4300 39.300 42.3 xxx
104 AD0824XB-D73(NEUM) 24 0.10 Hypro Bearing 4300 39.300 42.3 xxx
105 xxx xxx xxx xxx xxx xxx xxx xxx
106 xxx xxx xxx xxx xxx xxx xxx xxx
107 xxx xxx xxx xxx xxx xxx xxx xxx
108 xxx xxx xxx xxx xxx xxx xxx xxx
109 xxx xxx xxx xxx xxx xxx xxx xxx
110 xxx xxx xxx xxx xxx xxx xxx xxx
111 xxx xxx xxx xxx xxx xxx xxx xxx
112 xxx xxx xxx xxx xxx xxx xxx xxx
113 xxx xxx xxx xxx xxx xxx xxx xxx
114 xxx xxx xxx xxx xxx xxx xxx xxx
115 xxx xxx xxx xxx xxx xxx xxx xxx
116 xxx xxx xxx xxx xxx xxx xxx xxx
117 xxx xxx xxx xxx xxx xxx xxx xxx
118 xxx xxx xxx xxx xxx xxx xxx xxx
119 xxx xxx xxx xxx xxx xxx xxx xxx
120 xxx xxx xxx xxx xxx xxx xxx xxx
121 xxx xxx xxx xxx xxx xxx xxx xxx
x xxx xxx xxx xxx xxx xxx xxx xxx

Note:

25

120

 35 40

110

 40 35 40 100
1 2 3 4 5 6

AD0812UX-D91GP + 2P7 Plug
7 8 9 10 11 12

Note(s):
  • Pictures may not reflect actual items.
  • Specifications may change without notice, subject to manufacturers.
  • Product Status: - Usually In Stock, - Available but need to order, - Discontinued / Not Available, - Call for more Info
