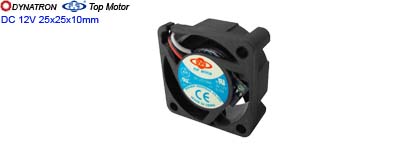

Axial Flow DC Cooling Fan
25x25x10mm Dynatron / Top Motor
FNxx-2510-xxx

Links:

Specification:

Size(mm)

25 x 25 x 10
Model No. DF122510BU
DF122510SU		 DF122510BH
DF122510SH		 DF122510BM
DF122510SM		 DF122510BL
DF122510SL
Voltage(V) 12 12 12 12
Speed(RPM) 15000 13000 10000 7000
Bearing(1) SBQ SBQ SBQ SBQ
Current(Amp) 0.20 0.15 0.12 0.09
Watts(W) 2.40 1.80 1.44 1.08
Air Flow(CFM) 2.70 2.30 2.00 1.40
Static Pressure (mm/H2O) 11.50 8.60 5.00 2.60
Noise(dBA) 32.00 27.00 23.30 20.80
(1) Available in Sleeve Bearing, Dual Ball Bearing
(2) MTBF (Operating temp. 25°C): Sleeve Bearing: 35,000 hours, Dual Ball Bearing: 50,000 hours
Items Descriptions
Label Size 15mm
Frame PBT+30%GF UL94V-0 (Black)
Impeller PBT+15%GF UL94V-0 (Black)
Weight 8±2 grams
Operating Temperature - 10 °C ~ + 65 °C (65 %RH)
Storage Temperature - 30 °C ~ + 70 °C (65 %RH)
Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G)
Frequency Range:10Hz<->55Hz/30SEC.
Linear Scanning 120 Cycle
Endurance Timer Per Axis: 30Min.
Orientation: X,Y,Z.
Drop Test Motor withstands one free body drop from 30 cm in high
onto 10 mm thickness of wooden board for each of the
three faces in minimum packing condition
Acoustic Noise 21.3dBA – Curve (Max21.6dBA)
 Measuring Condition – Under rated voltage in semi-anechoic chamber equipment sound level meter

Name Changed:

New Part Numbers Old Part Numbers
DF122510BH Dual Ball was DF122510BA, DF1202BA
DF122510BM Dual Ball was DF122510BB, DF1202BB
DF122510BL Dual Ball was DF122510BC, DF1202BC
DF122510PH Ball was DF122510BH, DF1202BH
DF122510PM Ball was DF122510BM, DF1202BM
DF122510PL Ball was DF122510BL, DF1202BL
DF122510SBH Sleeve was DF122510SH, DF1202SH
DF122510SM Sleeve was DF122510SM, DF1202SM
DF122510SL Sleeve was DF122510SL, DF1202SL

Info / Spec subject to change without prior notice
