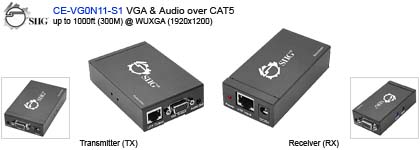

VGA &
Audio Extender over CAT5
SIIG CE-VG0N11-S1 (TX & RX)
up to 1000ft (300M) @ WUXGA
(1920x1200)
EX-VGA-C5-VG0N11S1
Overview:
SIIG’s VGA & Audio CAT5 Extender is designed to extend your VGA and
stereo audio signals over one economical CAT5/5e/6/7 cable. It
supports analog stereo audio and VGA transmission distances up to
1000ft (330 m) at WUXGA (1920x1200) resolution. It features an
adjustable peak and gain control on the receiving (RX) unit for
optimal video quality. The VGA & Audio CAT5 Extender provides
long-range audio/video connections between devices such as HDTVs,
DVD players/recorders (Blu-ray®, HD-DVD, up-converting DVD),
computer systems, gaming systems, digital cable/satellite boxes and
AV receivers while maintaining signal strength and superior video
quality enabling you to improve, enhance, and satisfy your audio and
video enjoyment.
The VGA & Audio CAT5 Extender is RoHS compliant, FCC and CE
regulatory approved, and is backed by SIIG’s limited 3-year
warranty.
Features:
Specifications:
-
Supports
up to 1000ft (300M) @ WUXGA (1920 x 1200) resolution
-
Supports
local VGA out
-
Metal
housing for better RF shielding
-
Transmitter (TX):
-
Weight: 0.48 lbs
-
Input:
15-pin, VGA (Female); 3.5mm stereo audio jack (Female)
-
Output: 1 x RJ45, VGA (Female); 3.5mm stereo audio jack (Female)
-
Power
jack: 5VDC
-
Housing: Metal
-
Color:
Black
-
Receiver
(RX):
-
Dimensions: 3.21" (W) x 1.69" (H) x 0.91" (D)
-
Weight: 0.26 lbs
-
Input:
1 x RJ45
-
Output: 15-pin, VGA (Female); 3.5mm stereo audio jack (Female)
-
Power
jack: 5VDC
-
Housing: Metal
-
Color:
Black
-
Power
adapter (2x):
-
Certifications/Standards:
FCC, CE, RoHS
-
Warranty:
3 years
-
County of
origin: China
Package
Contents:
|
