USB Extender thru Cat.5e UTP

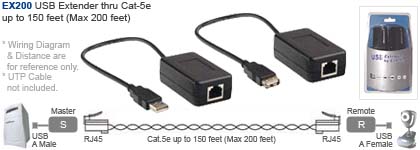

EX200 USB Extender thru Cat-5e
up to 150 feet (Max 200 feet)
AMP-USB-C5e-EX200
Introduction:

This unique USB extender lets you locate your USB device or hub up to 150 feet from your computer, overcoming the typical 15-feet USB cable limitation. The embedded “intelligent” integrated circuit cleans, amplifies USB signal and watches USB 1.1 protocol. The USB signals going in and out of this extension cable in both directions are buffered to assure signal quality. Patented ASIC technology conditions the USB signals to communicate up to 150 feet using low-cost Cat' 5/5e/6 cable. Now you can enhance the capability and usefulness of your USB devices!

Typical Uses:
  • Use low cost USB webcams for security applications
  • Operate USB barcode scanners from a central computer
  • Extend a USB keyboard in a conference room

Features:

  • Compliant with the standard specification of USB 1.1
  • Patented ASICs (Application Specific Integrated Circuits) built-in
  • Provides support for any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB device
  • Embedded USB transceivers at both ends to prevent signal loss
  • 10/100 Base-T Ethernet interfaces for easy extension of up to 150 feet
  • No additional drivers required

Specifications:

  • Master Unit (Upstream port: USB Type “A” Male; Downstream port: RJ45 Jack)
  • Remote Unit (Upstream port: USB Type “A” Female; Downstream port: RJ45 Jack)
  • Master Built-in Cable Length: 1.0 ft
  • Interconnect Cable: Standard Category-5/5e/6 Network cable
  • Max cable Length: 200ft
  • Supply Current Drawn: 20mA
  • Operating Temperature: 0°- 50°C
  • Storage Temperature: -40°C - 85°C
  • Certification: FCC Class B, CE

System Requirements:

  • Windows 98SE/ME/2000/XP
  • Macintosh OS 9.x or higher
  • 64MB of RAM or more
  • Available USB port

Package Includes:

  • Master Unit with 1 feet cable attached
  • Remote Unit
