Parallel thru
Phone Line Extender

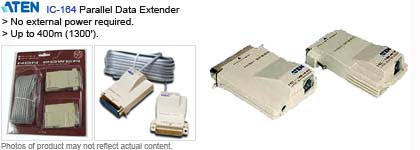

ATEN IC-164
EX-PRT-RJ11-xxx
Descriptions:
The IC164 parallel signal extender can
extend the distance between your parallel peripherals and the PC up to
400m, thus allowing you to control parallel peripherals from far away.
The local unit and remote unit of IC-164 are connected with the RJ-11
cable, which is easy and time-saving to install.
Features:
-
No external power required.
-
Easy to install and operate.
-
Compact size.
-
Cable distance of up to 400m
(1300').
-
OS Support: Windows 2000,
Windows XP
Specifications:
|
Function |
IC-164T (Transmitter) |
IC-164R (Receiver) |
|
Connectors |
1 DB x 25 Male |
1 x C-36 Male |
|
1 x RJ-11 Jack Female |
|
Cable Type |
4 Wire Telephone Line |
|
Cable Length |
400 m [1300'] (Max.) |
|
Data Transfer Speed |
21 Kbytes/Sec. |
|
Power (Optional) |
DC 9V, 0.4W (Min.) |
|
Environment |
Operating Temp. |
0 ~50˚C |
|
Storage Temp. |
-20 ~ 60˚C |
|
Humidity |
0~80% RH, Non-condensing |
|
Physical Properties |
Housing |
Plastic |
|
Weight |
45 g |
50 g |
Dimension
( L x W x H ) |
8.20 x 5.40 x 2.60 cm |
7.60 x 5.30 x 2.10 cm |
Note:
-
The specification and
pictures are subject to
change without notice.
-
All trademarks and logos
are the properties of
their respective
holders.
|
|
