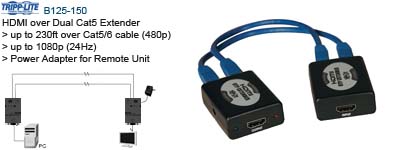

HDMI over Dual Cat5 Extender
- Extends an HDMI signal up to 230ft over Cat5/6 cable (480p)
- Supports resolutions up to 1080p (24Hz)
- HDCP compliant
Overview:
The B125-150 HDMI Over Dual Cat5 Extender can extend an HDTV signal beyond the standard
15-ft. limitation. For maximum range, use 24Awg, Solid wire UTP cable (Tripp Lite N202-Series). When used, ranges will be: 480p / 24Hz resolution up to 230 ft. (70 m); 720p / 24Hz resolution up to 196 ft. (60 m); 1080p / 24Hz resolution up to 115 ft. (35 m). Use Tripp Lite P568-Series HDMI cables to connect the Extender to the HDMI source and monitor. The B125-150 is HDCP compliant and comes with a 1 year limited warranty.
Key Features:
- Fully automatic equalization up to 40dB; no system control required
- Eliminates equipment noise in the viewing environment
- Supports resolutions up to 1080p (24Hz)
- Green LED indicates unit is receiving power, Red LED indicates the unit is not receiving a working signal
- HDCP compliant
Package Includes:
- HDMI Extender Source Unit
- HDMI Extender Remote Unit
- Power Adapter ( Remote Unit only )
- Owners manual
Specifications:
Overview Intended Application Home Theater/AV Physical Unit Dimensions (HWD/in) Remote Unit: 2.375"W x 1.75"D x 0.75"H Unit Dimensions (HWD/cm) Source Unit: 2.375"W x 1.75"D x 0.75"H Color Black
