Overview

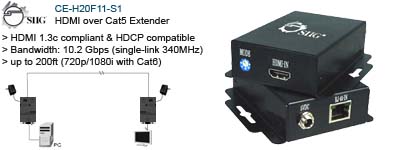

Extends HDMI signals via 1 CAT5e/6 to an HDMI display

Features

• Extends video/audio transmission from an HDMI source to an HDMI display over one economical CAT5e/6 cable
• Minimize cable skew with the adjustable 8-level equalization knob
• Supports uncompressed 7.1 digital & DTS-HD and Dolby True HD high bit rate audio
• Compatible with DVI monitors
• Complete kit with transmitter and receiver unit

Specifications

• HDMI 1.3c compliant & HDCP compatible
• Chipset: Silicon Image
• Video bandwidth: 10.2 Gbps (single-link 340MHz)
• Input TMDS signal: 1.2 Volts (peak to peak)
• Input DDC signal: 5 Volts (peak to peak)
• Video support: 480i / 480p / 720p / 1080i / 1080p (60Hz)
• Transmission:
  • 720p/1080i (HD): 165ft (CAT5e) & 200ft (CAT6)
  • 1080p (full HD): 130ft (CAT5e) & 165ft (CAT6)
• Transmitter:
  • Input: 1x HDMI
  • Output: 1x RJ-45
• Receiver:
  • Input: 1x RJ-45
  • Output: 1x HDMI
• Power supply: 5V, 4A DC
• Power consumption: 1 Watt (max
• Housing: metal (for better RF shielding)

Package Contents

• HDMI 1.3 CAT5e Transmitter
• HDMI 1.3 CAT5e Receiver
• Power adapter (5V, 4A)
• Screw kit
• User's manual
