Brand Features
The Extender
Brackets provide an
additional 2" of
depth and enhanced
ventilation for the
Series 280 and 420
Structured Media
Enclosures. The
Extender Brackets
attach between the
enclosure and the
cover to form a
frame which has four
2" deep sheet metal
rails with louvers
on each side. The
increase in depth
allows for better
cable management and
for larger modules
within the
Structured Media
Enclosure
Item
Description

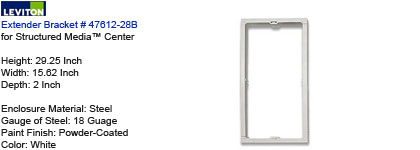

28" Structured Media Extender Bracket

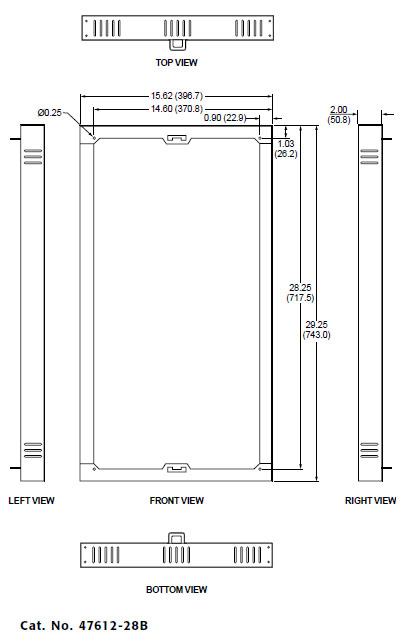

Dimensional Data
-
Height:
29.25 Inch
-
Width:
15.62 Inch
-
Depth:
2 Inch
Material
Specifications
-
Enclosure
Material:
Steel
-
Gauge of
Steel:
18 Guage
-
Paint
Finish:
Powder-Coated
-
Color:
White
Product
Features
-
Series:
Series 280
-
Item:
2 Inch
Extender
Brackets
-
Height:
29.25 Inch
-
Width:
15.62 Inch
-
Depth:
2 Inch
-
Gauge of
Steel:
18 Guage
-
Paint
Finish:
Powder-Coated
-
Color:
White
