Structured Wiring Enclosure

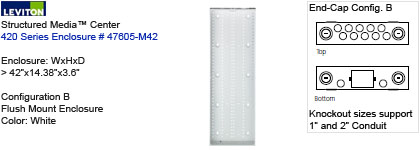

Leviton Structured Media™ Center End-Cap Configuration B
420 Series 47605-M42
Box-LV-xxx
Link(s):
Features and Benifits:
- Positive stops on housing side walls
prevent enclosure from falling through
studs during installation.
- One piece white steel unit hold full
and half width expansion modules.
- Mounting guides on cover align
screw-holes and reduce the chances of
dropping during attachment.
- Powder-coated white cover features a
3/4 Inch overlap to hide irregular
drywall cuts.
- Multiple knock-outs on top and
bottom including two new 2 Inch
knock-outs on top, facilitate cable
entry and routing.
- Cut-out in base of enclosure for
mounting single gang J-Box kit.
- Six 3 Inch square self-healing foam
grommets accomidate cable bundles.
Technical Information:
-
Dimensional
Data
-
Height:
42
Inch
-
Width:
14.38
Inch
-
Depth:
3.6
Inch
-
Material
Specifications
-
Enclosure
Material:
Steel
-
Gauge
of
Steel:
18
Guage
-
Paint
Finish:
Powder-Coated
-
Color:
White
-
Mechanical
Specifications
-
Max.
Module
Capacity:
12
-
Notes:
Module
count
dependant
of
the
type
used.
-
Knockouts:
Multiple
up
to 2
Inch
-
Product
Features
-
Series:
Series
420
-
Item:
Enclosure
Only
-
Height:
42
Inch
-
Width:
14.38
Inch
-
Depth:
3.6
Inch
-
Gauge
of
Steel:
18
Guage
-
Paint
Finish:
Powder-Coated
-
Max.
Module
Capacity:
12
-
Notes:
Module
count
dependant
of
the
type
used.
-
Color:
White
-
Standards
and
Certifications:
ACA/CULUS/UL/TIA/EIA/FCC
-
Warranty:
2
Year
Limited
Plus
-
Standards
and
Certifications
-
UL
Listed:
Fire
and
Burglary
-
ACA
Listed:
Yes
-
CULUS
Listed:
Yes
-
TIA/EIA:
568-A
570-A
-
FCC
Rated:
Part
68
Drawing: (
Structured
Media Center
SMC-420 Series
with Standard End-Cap Configuration )
|
