Structured Wiring Enclosure with Flush Mount Cover

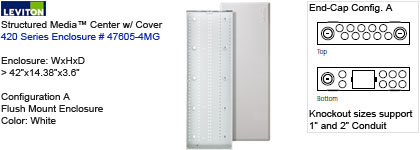

Leviton Structured Media™ Center w/ End-Cap Configuration A
420 Series 47605-MG Flush Mount Enclosure
( = # 47605-42N Enclosure with # 47605-F42 Flush Mount Cover )
Box-LV-xxx

Link(s):

Item Description

42" Structured Media Enclosure and Flush-Mount Cover

Technical Information
Dimensional Data
  • Height: 42 Inch
  • Width: 14.38 Inch
  • Depth: 3.6 Inch

Material Specifications
  • Enclosure Material: Steel
  • Gauge of Steel: 18 Guage
  • Paint Finish: Powder-Coated
  • Color: White

Mechanical Specifications
  • Max. Module Capacity: 12
  • Notes: Module count dependant of the type used.
  • Knockouts: Multiple up to 2 Inch

Product Features
  • Series: Series 420
  • Item: Enclosure and Flush Mount Cover
  • Height: 42 Inch
  • Width: 14.38 Inch
  • Depth: 3.6 Inch
  • Gauge of Steel: 18 Guage
  • Paint Finish: Powder-Coated
  • Max. Module Capacity: 12
  • Notes: Module count dependant of the type used.
  • Color: White
  • Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC
Standards and Certifications
  • UL Listed: Fire and Burglary
  • ACA Listed: Yes
  • CULUS Listed: Yes
  • TIA/EIA: 568-A 570-A
  • FCC Rated: Part 68
Features and Benefits
  • Positive stops on housing side walls prevent enclosure from falling through studs during installation.
  • One piece white steel unit hold full and half width expansion modules.
  • Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
  • Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
  • Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
  • Cut-out in base of enclosure for mounting single gang J-Box kit.
  • Six 3 Inch square self-healing foam grommets accommodate cable bundles.

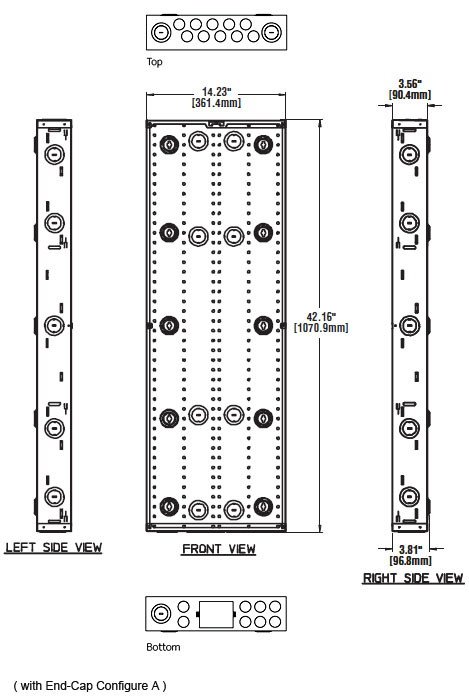

Drawing: ( # 47605-42N Structured Media Center SMC-420 Series with Standard End-Cap Configuration )

Drawing: ( Flush Mount Cover # 47605-F42 for Structured Media Center SMC-420 Series )
