Flush Mount Cover
for Leviton 280 Series Structured Media Enclosures.
Box-LV-xxx

Link(s):

Features and Benefits:
  • Positive stops on housing side walls prevent enclosure from falling through studs during installation.
  • Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
  • Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
Technical Information:
  • Dimensional Data
    • Height: 29.25 Inch
    • Width: 15.62 Inch

  • Material Specifications
    • Enclosure Material: Steel
    • Gauge of Steel: 18 Guage
    • Paint Finish: Powder-Coated
    • Color: White

  • Product Features
    • Series: Series 280
    • Item: Flush Mount Cover
    • Height: 29.25 Inch
    • Width: 15.62 Inch
    • Gauge of Steel: 18 Guage
    • Paint Finish: Powder-Coated
    • Color: White
    • Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC

  • Standards and Certifications
    • UL Listed: Fire and Burglary
    • ACA Listed: Yes
    • CULUS Listed: Yes
    • TIA/EIA: 568-A 570-A
    • FCC Rated: Part 68

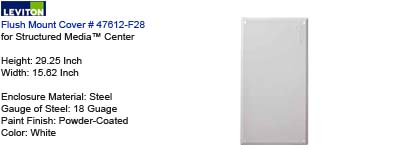

Drawing: ( Flush Mount Cover for SMC-280 Series Structured Media Center )
