Structured Wiring Enclosure with Flush Mount Cover
Leviton Structured Media™ Center Standard End-Cap Configuration

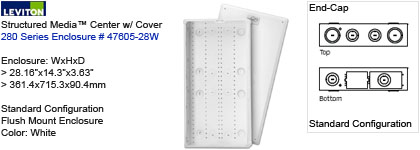

280 Series 47605-28W Flush Mount Enclosure
( = # 47605-28N Enclosure with # 47605-F28 Flush Mount Cover )
Box-LV-xxx

Link(s):

Brand Features

This 28" Structured Media enclosure is the ideal solution to organize the telephone, TV, multi-room audio, and high-speed data network for a 3-5 bedroom house, including a home office or den. The enclosure will comfortably accommodate up to eight distribution modules, depending on selection and density. Technologies include coaxial cable-based CATV or Satellite TV equipment from the CAT 5e or CAT 6 UTP-based communications and networking equipment. The sturdy design and functionality facilitate installation, reducing job-site labor costs, and making it easier for the DIY'er to put some order to the bird's nest of cables that make up most home networks. Leviton's 28" Structured Media enclosure is packaged as part of a kit that includes a flush-mount cover.

Item Description

28" Structured Media Enclosure and Flush-Mount Cover

Technical Information
Dimensional Data
  • Height: 28 Inch
  • Width: 14.38 Inch
  • Depth: 3 Inch

Material Specifications
  • Enclosure Material: Steel
  • Gauge of Steel: 18 Guage
  • Paint Finish: Powder-Coated
  • Color: White

Mechanical Specifications
  • Max. Module Capacity: 8
  • Notes: Module count dependant of the type used.
  • Knockouts: Multiple up to 2 Inch

Product Features
  • Series: Series 280
  • Item: Enclosure and Flush Mount Cover
  • Height: 28 Inch
  • Width: 14.38 Inch
  • Depth: 3 Inch
  • Gauge of Steel: 18 Guage
  • Paint Finish: Powder-Coated
  • Max. Module Capacity: 8
  • Notes: Module count dependant of the type used.
  • Color: White
  • Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC
Standards and Certifications
  • UL Listed: Fire and Burglary
  • ACA Listed: Yes
  • CULUS Listed: Yes
  • TIA/EIA: 568-A 570-A
  • FCC Rated: Part 68
Features and Benefits
  • Accommodates two or more full-width Pre-Configured Structured Cabling Panels
  • Positive tabs on housing sidewalls prevent enclosure from falling through the studs during installation
  • One piece white steel unit holds 1/4, 1/2 and full-width expansion modules with the ability to mount most modules vertically or horizontally
  • Can be surface-mounted or recessed
  • Ideal for new installations and retrofits
  • Powder coated white cover features 3/4" overlap to hide irregular drywall cuts
  • Combine two or more enclosures for larger installations or future expansion
  • Multiple knock-outs on top and bottom, including two 2" knock-outs on top, facilitate cable entry and routing
  • Cut-out in base of enclosure for mounting single and double gang J-boxes and power modules
  • Six 3" square self-healing foam grommets accommodate and protect cable bundles
  • Cutout pattern in bottom accommodates the same Leviton Power Modules for any necessary active gear like service provider modems or Leviton active routers and switches
  • Standards Compliance: ACA and CULus listed; UL Listed for fire and burglary
  • Enclosures are constructed of white powder coated 20 gauge steel
  • Covers are constructed of white powder coated 18 gauge steel

Drawing: ( # 47605-28N Structured Media Center SMC-280 Series with Standard End-Cap Configuration )

Drawing: ( Flush Mount Cover # 47605-F28 for Structured Media Center SMC-280 Series )
